Rak Stackable modul 5.12K 48V 100Ah 200Ah Lifepo4 Server

Stok:

SKU:{{ product.sku }}

Model: {{ product.model }}

Detail Produk

Product Description

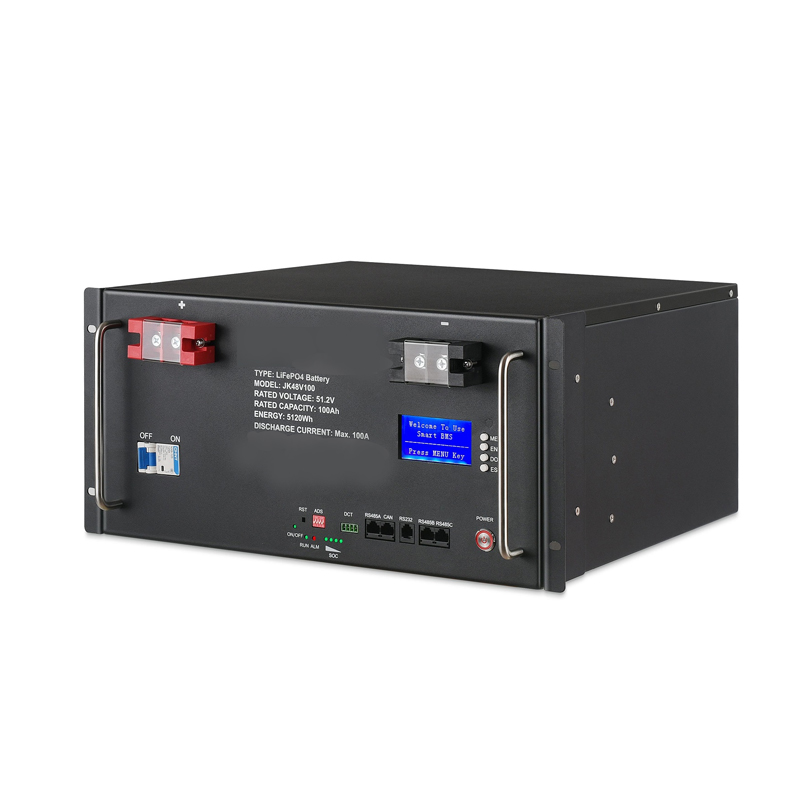

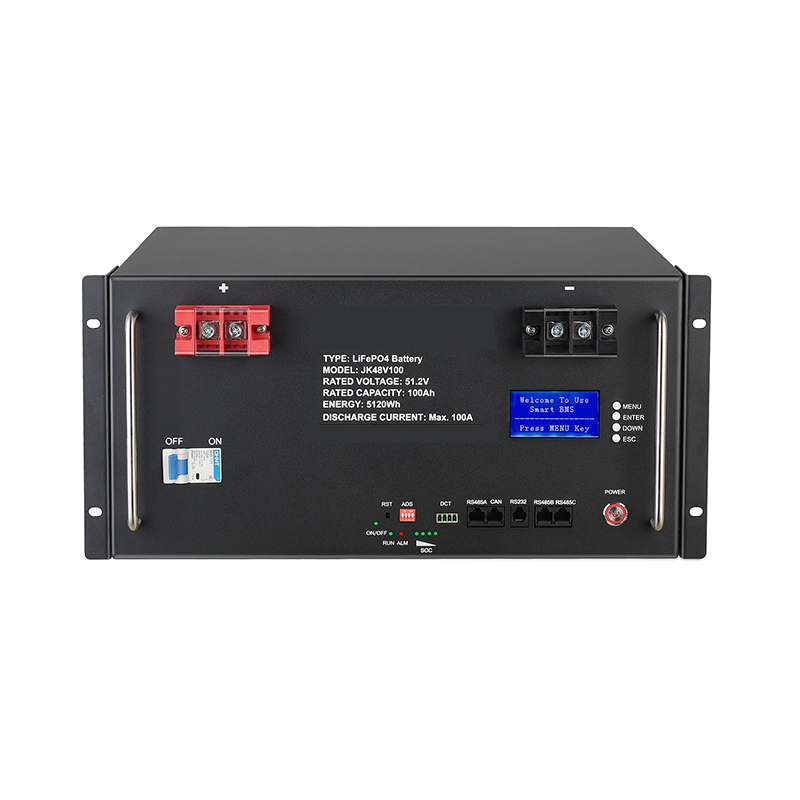

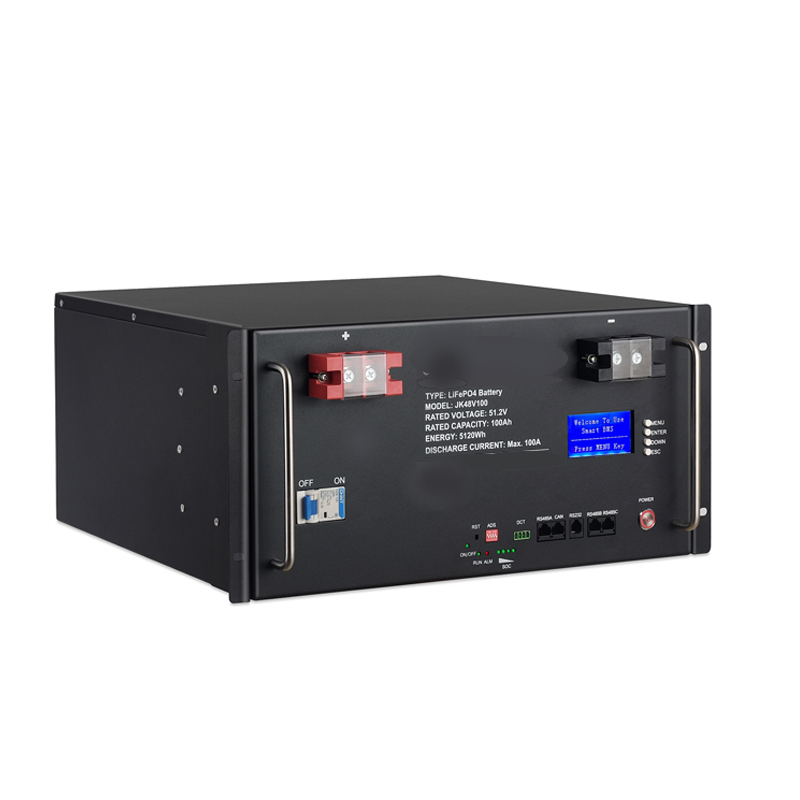

Upgraded 51.2V 100Ah/200Ah Server Rack LiFePO4 Battery

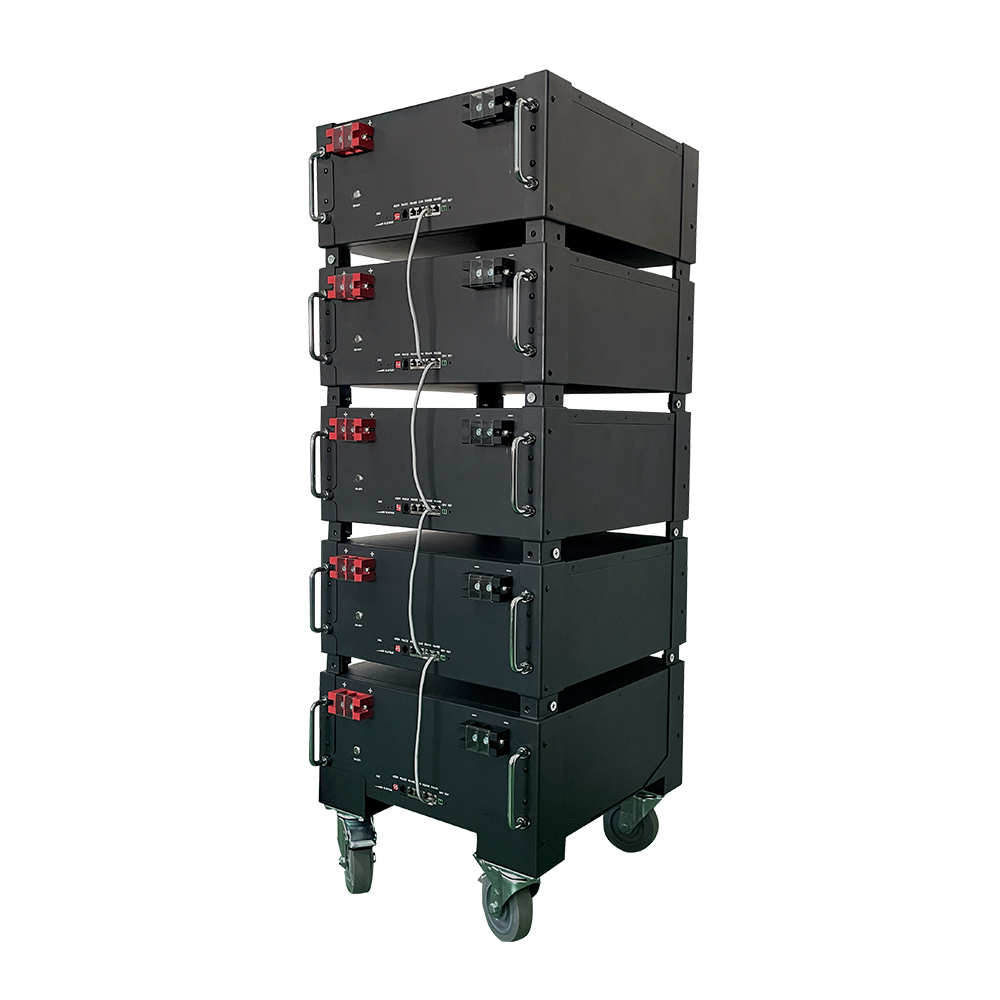

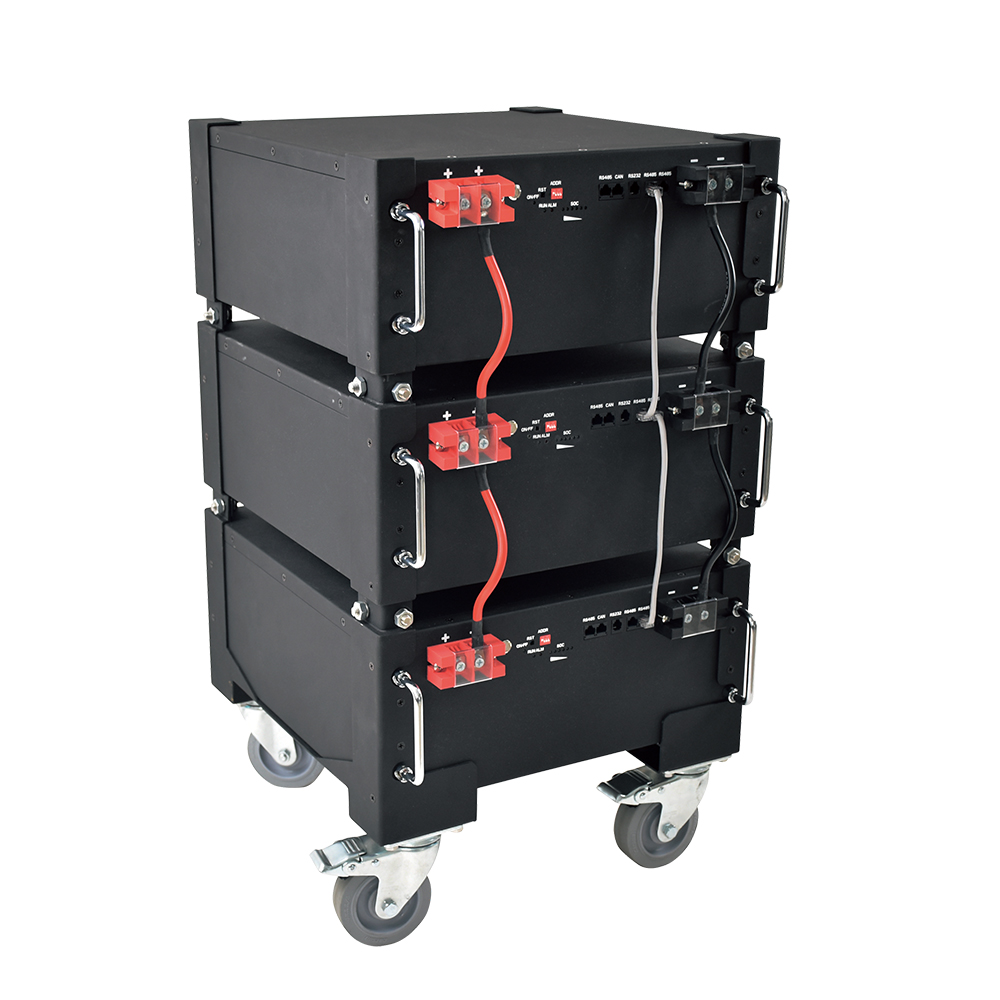

1 Modules to 8 Modules Stackable.

51.2V 50Ah，100Ah，200Ah per Module Optional

Capacity Expendable

1. Communicate with Growatt/MPP/Sol-Ark/Victron/Luxpower/Deye Inverter，etc 2. Power key (for BMS On/Off) 3. 4U For 5KWH 51.2V 100Ah, 5U For 10KWH 51.2V 200Ah 4. 6000+ Times Cycle Life 5. Recommend

Energy storage system 48v battery pack 51.2V 200Ah/100Ah lifepo4 battery Inverter solar power

ITEMS	STANDARD	REMARKS
Nominal voltage (V)	51.2
Energy (Wh)	10240
Nominal capacity (Ah)	200Ah /100 Ah	0.2 C discharge
Charging cut-off voltage (V)	57
Standard charging current	40	Recommended at 0.2 C
Maximum charging current (A)	100
Charging cut-off current (A)	1
Discharge cut-off voltage (V)	40
Standard continuous discharge current (A)	40	Recommended at 0.2 C
Maximum discharge current (A)	100
Internal resistance (mΩ)	≤100
Battery module size (mm)	445430222mm
Weight (kg)	Around 80kg
Discharge temperature range (℃)	-10～55
Charging temperature range (℃)	0~45
Storage temperature range (℃)	-20～45
Storage ambient humidity (RH)	5%～95%
Working environment humidity (RH)	≤85%
Positive and negative lead wire	DT38-100A-2P 38mm2 Terminal
Air Switch	Delixi DBG9
Case material	SPCC 1.5mm

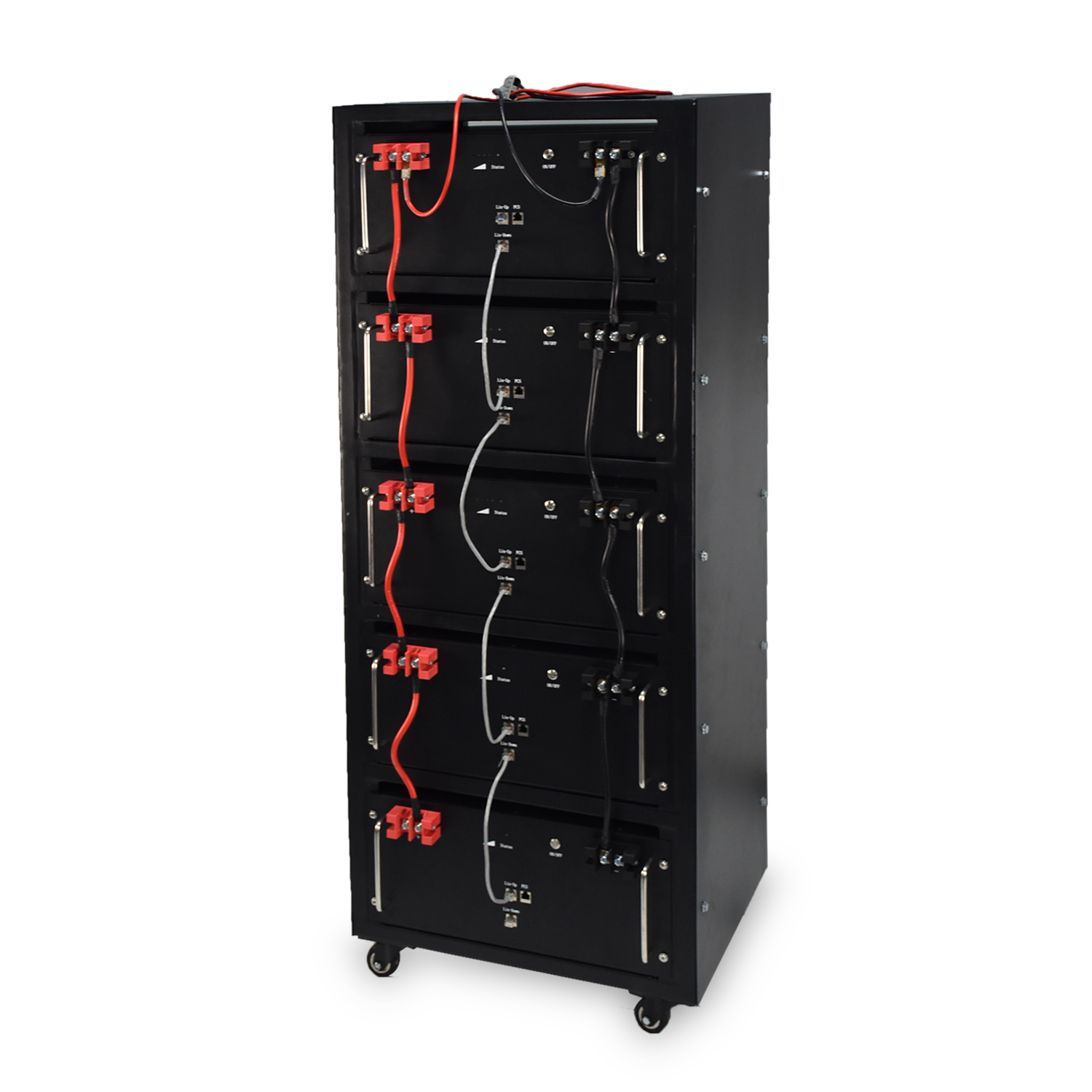

Server Rack Modules

Can be connected in parallel, up to 15 Max Automatic system cell balancing All parameters available on LCD display Temperature monitoring (high and low cut-off), 6 temperature sensors Exceptional voltage stability Maintenance-free No hydrogen generation or gassing

Our Company

Shenzhen Genxigreen Technology CO.,Ltd

Our company specialize in battery area for more than 7 years. Mainly manufacturing Lithium ion, LiFePO4, LiPolymer battery, and battery pack. Application on solar power storage, ebike battery pack, EV battery, garden mower battery, wireless vancuum cleaner, etc. To offer clients good quality of product and service is our mission. Customizing battery pack is accepted, we have professional engineer, who will offer best solution for your battery project.

Battery capacity detector Battery cell before assembling will be tested the capacity, internal resistant, etc. grading test.

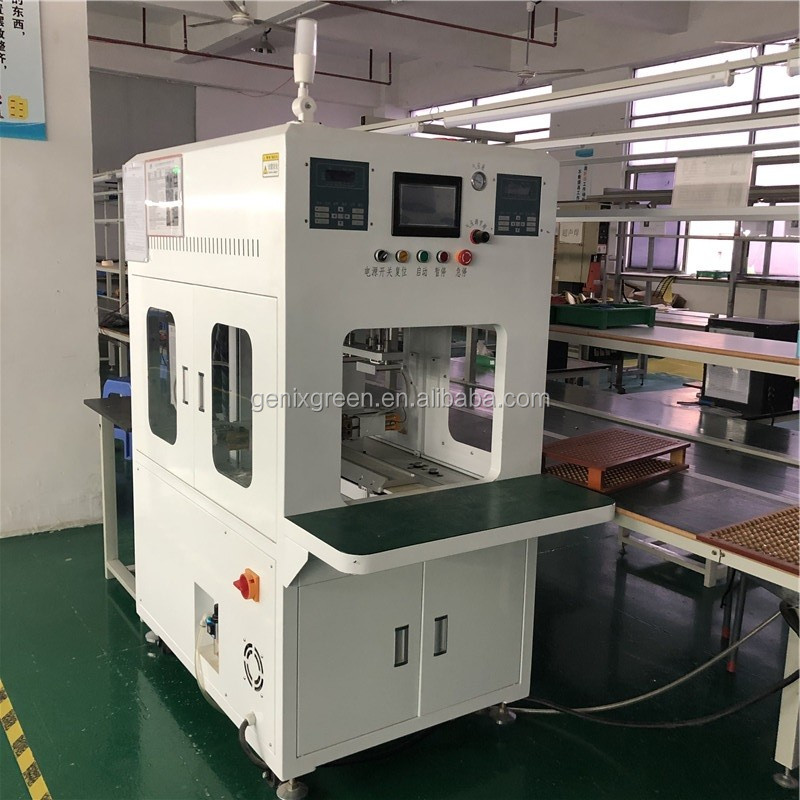

Automatic welder
Battery is assembled by battery plastic holder-orderly and good for heat radiation, etc.
Automatic welder welding battery pack

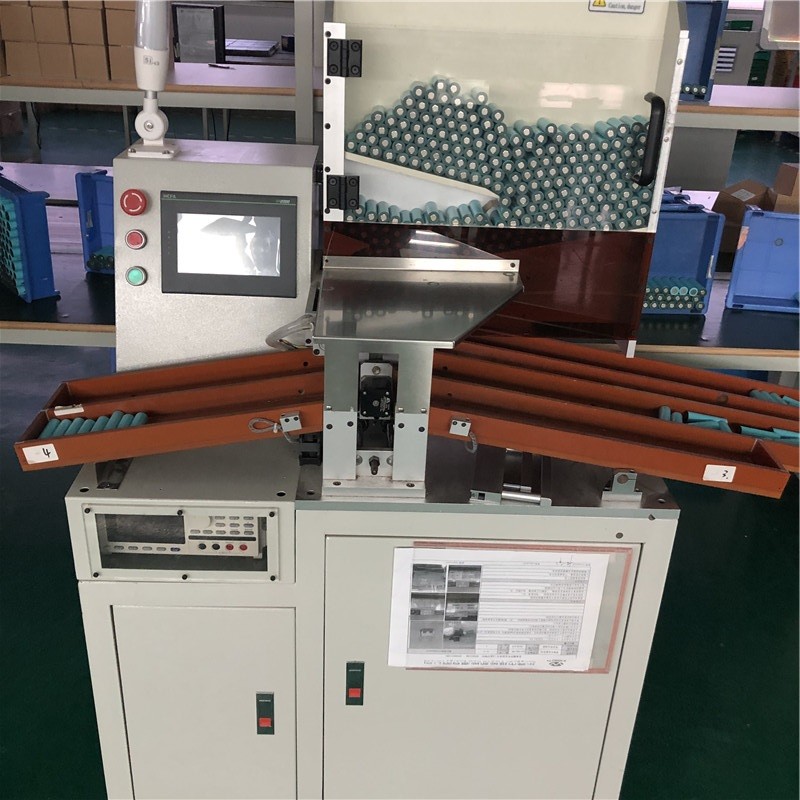

Battery cell sorting

Automatic sorting machine,test voltage and inner resistance

Aging Testing

All battery pack will do two aging test, one is PVC pack, one is after housing.
