E02 detektor mobil EEOBD baru ELM327 OBD2II BT5.1 instrumen diagnostik Mobil Bluetooth lintas batas

EEOBD-E02 Product introduction

1.EEOBD E02 is a new mini OBD2 vehicle diagnostic tool, it is an especially small and compact tool and a cool design. He then simply stays there, controlling and reading via BT. You can get all your data on your smartphone, tablet or computer. Easily plug into the OBDII port of the car, read the data sent by the on-board diagnostic system, detect ECU faults and provide you with a solution without having to take the car to the store every time.

2. EEOBD E02 Features:

Small size, plug and play

Stable wireless connection

No wires or batteries (adapter powered by original car outlet)

The adapter uses the fastest and most reliable ARM chip

Stable BT connection

Low power consumption, stable connection.

EEOBD Specifications:

Processor :ELM327 V1.5

Power supply voltage :12V

Transmission range :10M

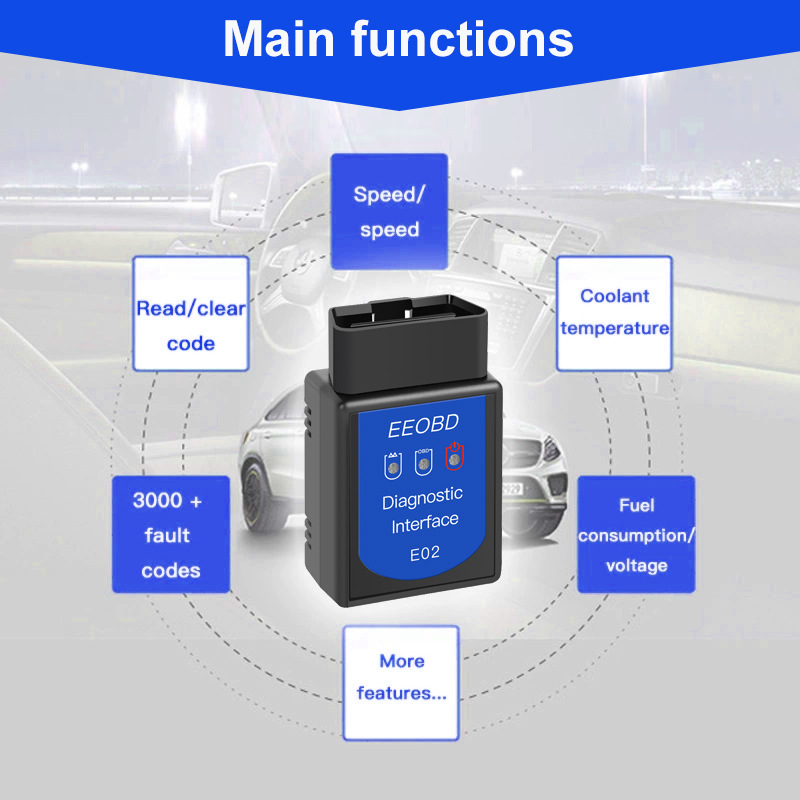

3. EEOBD E02 Main function:

1. Read diagnostic fault codes and show what they mean (there are more than 3000 common code definitions in the database).

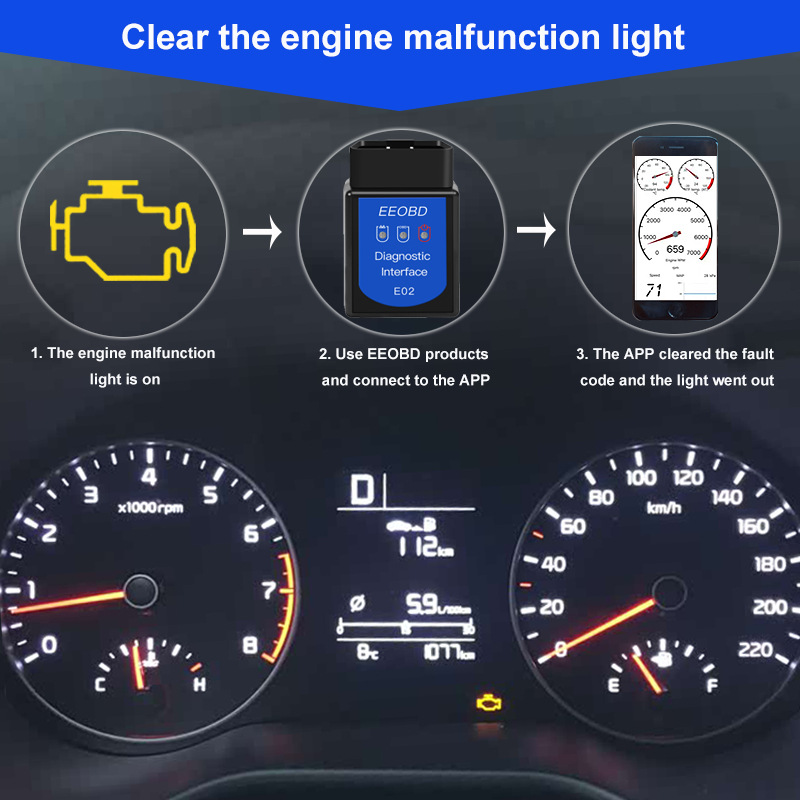

2. Clear the fault code and turn off the MIL(" Check engine "light)

3. Set the maximum number of responses to receive

4. Remove Spaces from ECU responses (to speed up data transfer)

5. Store unique identifiers in EEPROM

6. Run the CAN mask and filter command

7. Easily switch between variable and fixed CAN message lengths

8. There's more...

4. EEOBD E02 supported vehicles, general vehicle compatibility

United States - All vehicles 1996 and updated

Australia - All vehicles 2006 and updated

Brazil - All vehicles 2008 and updated

Canada - All vehicles 1998 and updated

Eu (gasoline)- All vehicles from 2001 and later

Eu (Diesel)- 2004 and newer for all vehicles

India - All vehicles 2010 and updated

Japan - All 2010 and newer vehicles

Mexico - All vehicles 2006 and updated

5. EEOBD E02 supports multiple protocols:

1. SAE J1850 PWM(41.6k baud)

2. SAE J1850 VPW(10.4k baud)

3.ISO9141-2(5 baud initialization, 10.4 baud)

4. iso14230-4kwp (5 baud initial value, 10.4 baud)

5. iso14230-4kwp (Fast initialization, 10.4kbaud)

6. ISO15765-4 CAN(11bit ID,500 kaud)

7. ISO15765-4 CAN(29bit ID,500 kaud)

8. ISO15765-4 CAN(11bit ID, 250k baud)

9. ISO15765-4 CAN(29bit ID, 250k baud).

(Hybrid or electric vehicles not supported)

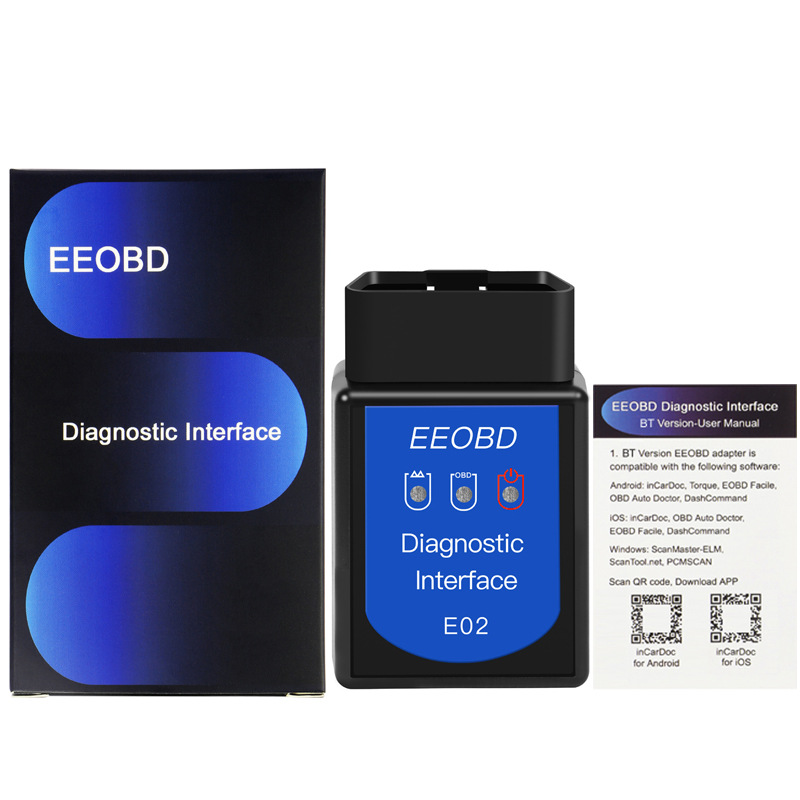

6. EEOBD E02 Download APP: The manual has a QR code for downloading the app. You can scan the QR code and download the APP on your phone.

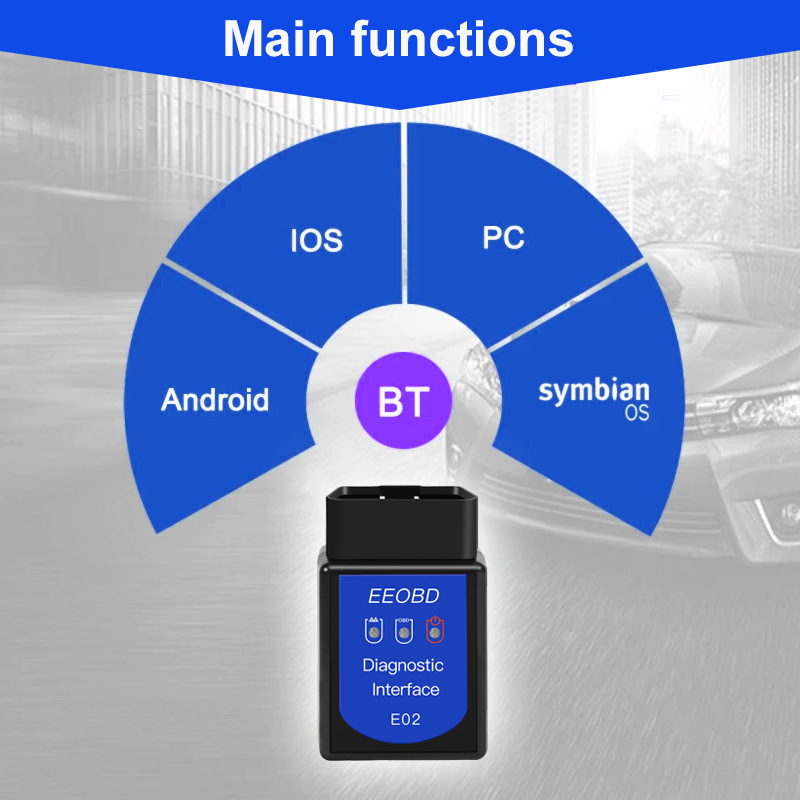

At the same time, EEOBD is also compatible with many apps on the market, you can use more apps:

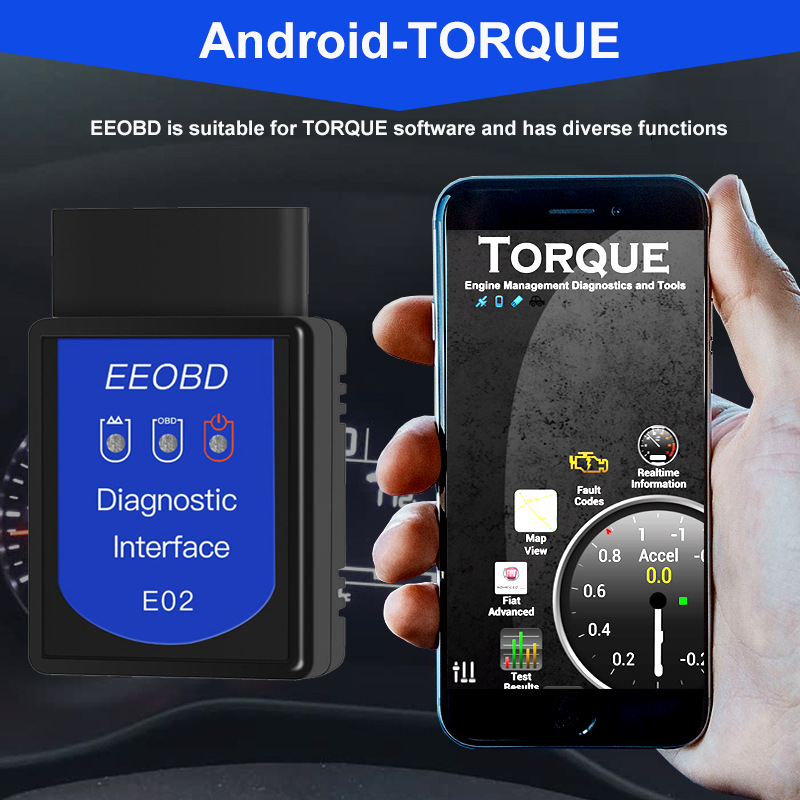

Android: Torque Lite/Pro, OBD Fusion, DashCommand, Car Scanner, inCarDoc, OBD Auto Doctor, EOBD Facile,

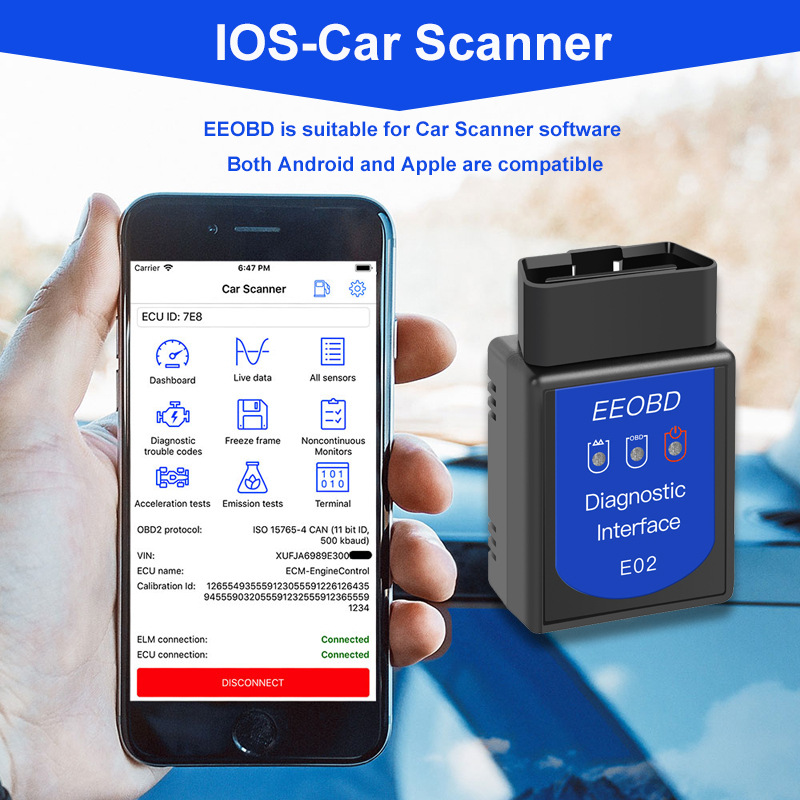

IOS: OBD Auto Doctor, EOBD Facile, Car Scanner, etc.

Windows: ScanMaster-ELM.

7.EEOBD E02 is suitable for 16-pin data link connectors

Most gasoline and diesel cars are mainly 16-pin interfaces, and the 16-pin DLC(Data Link Connector) design helps to connect your car and understand different data in a timely and convenient manner.

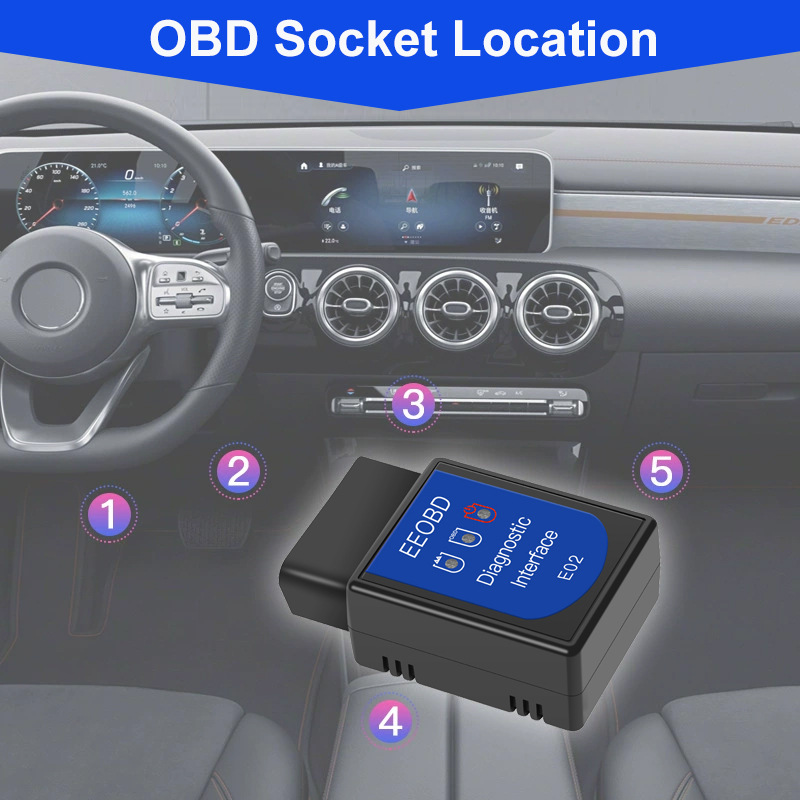

8. You need to find the OBD port location on your car, this EEOBD E02 diagnostic scanner plugs directly into your vehicle's OBDII port and connects to the OBDII app on your Android device via BT. Every time you turn on the check engine light or want to view your vehicle's performance, this gadget will help you better understand your vehicle.

9. Using the EEOBD E02 process:

1) Download the APP from the manual;

2) Insert EEOBD into the car;

3) Ignition and start the vehicle engine;

4) Set BT and APP according to instructions;

Connection successful, check vehicle status.
