BDM bingkai ECU pemrograman braket tambahan transparan visual mesh dukungan probe deteksi pin PCB

30*22*5cm 1.2kg

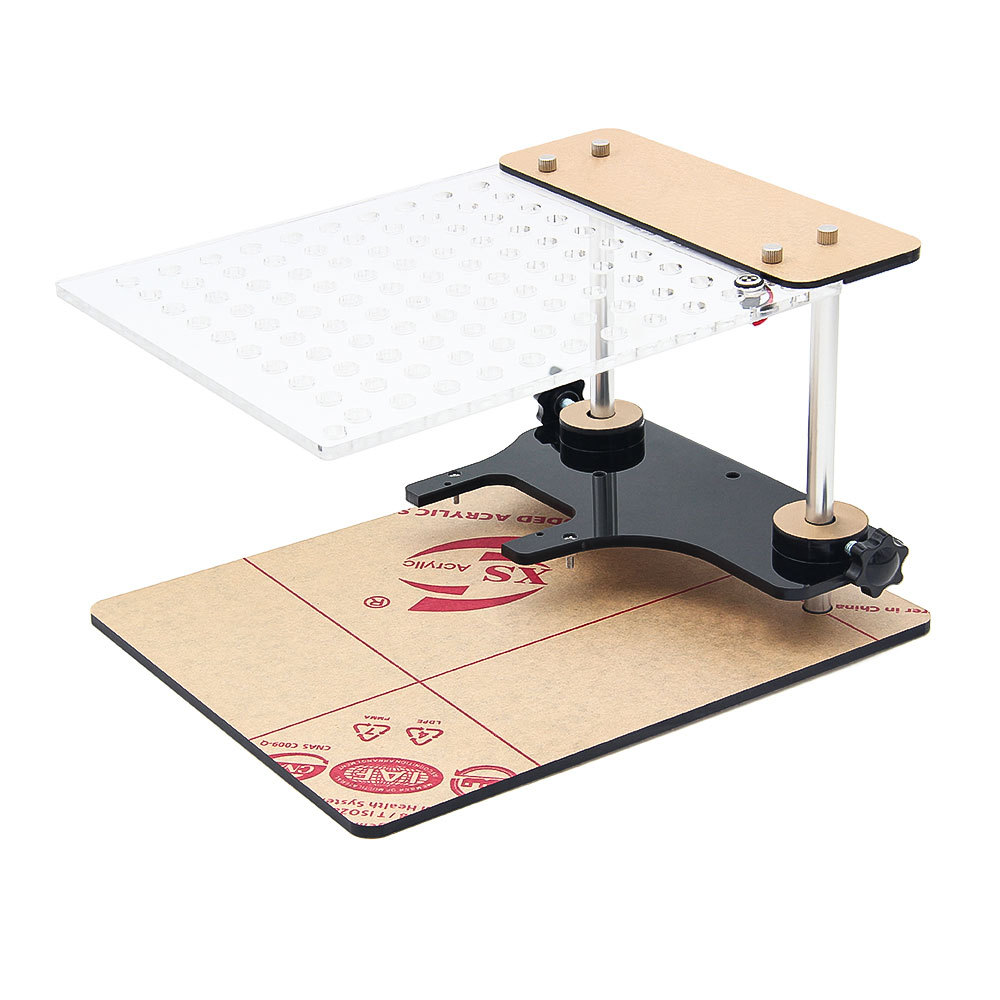

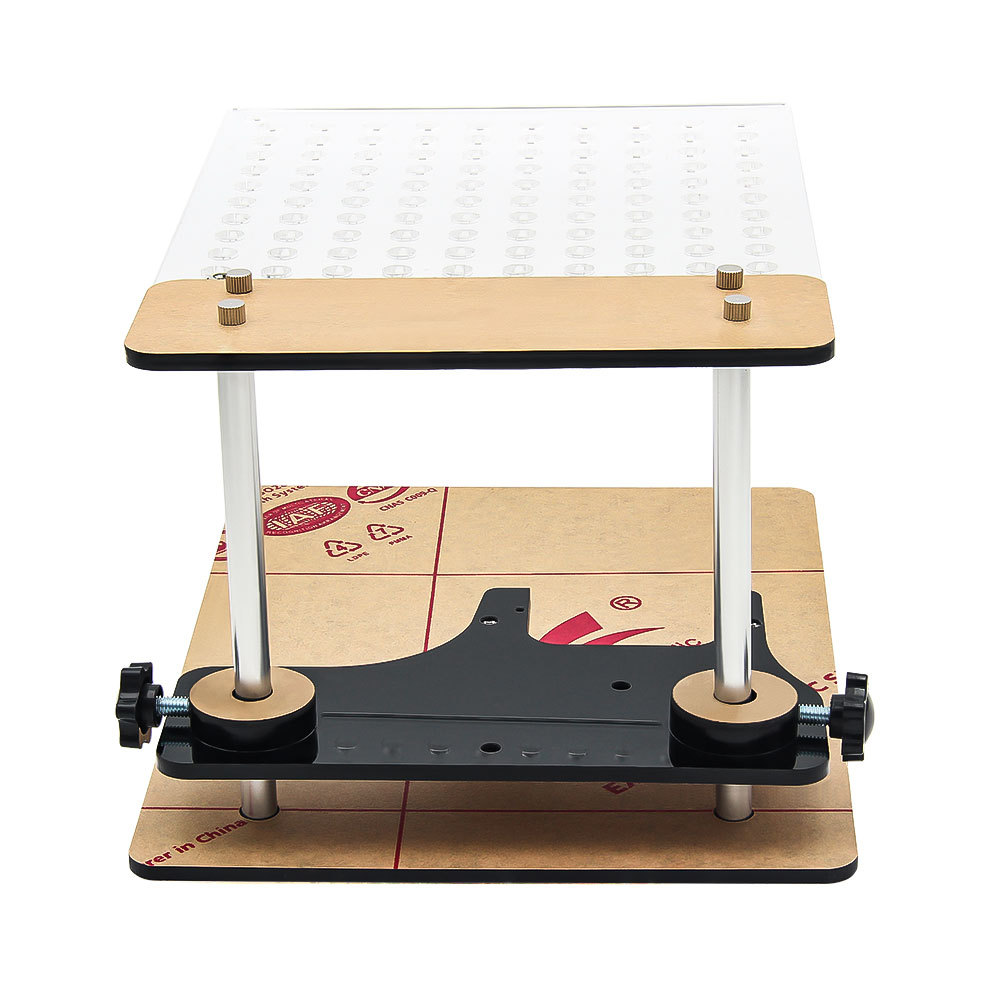

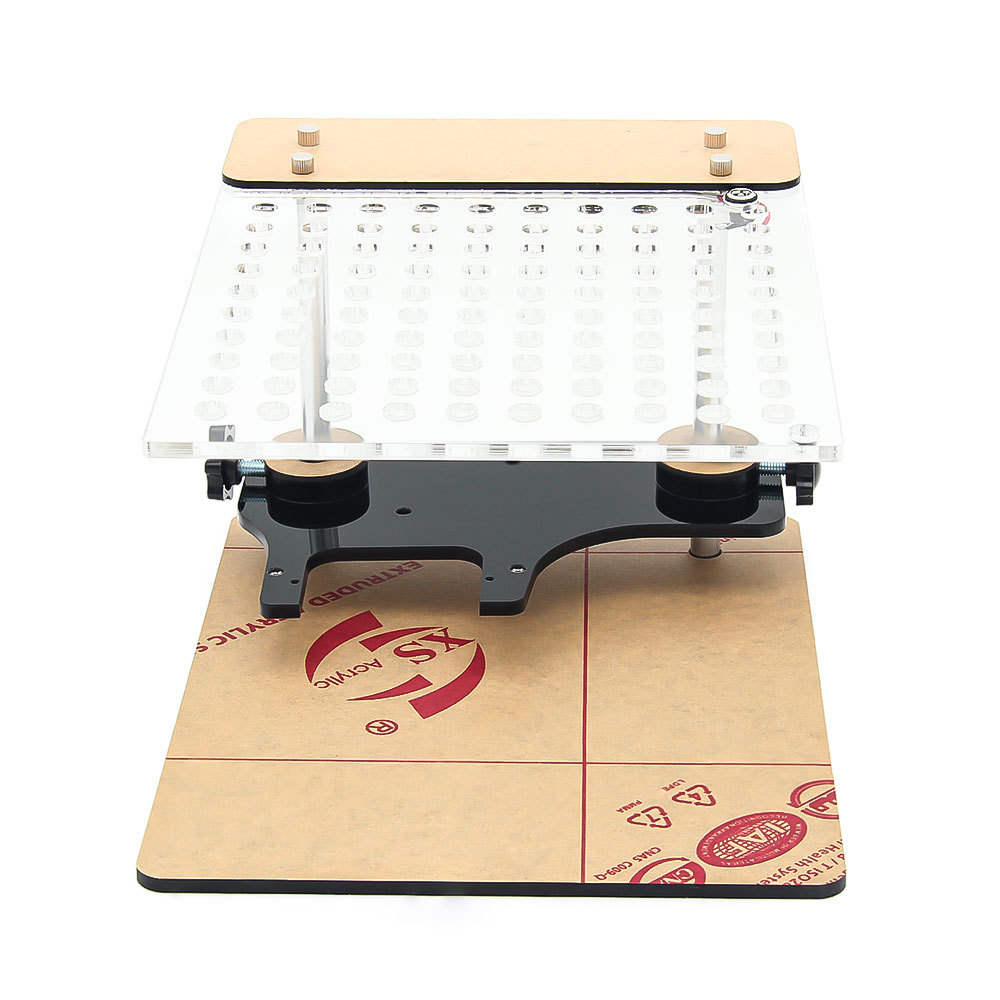

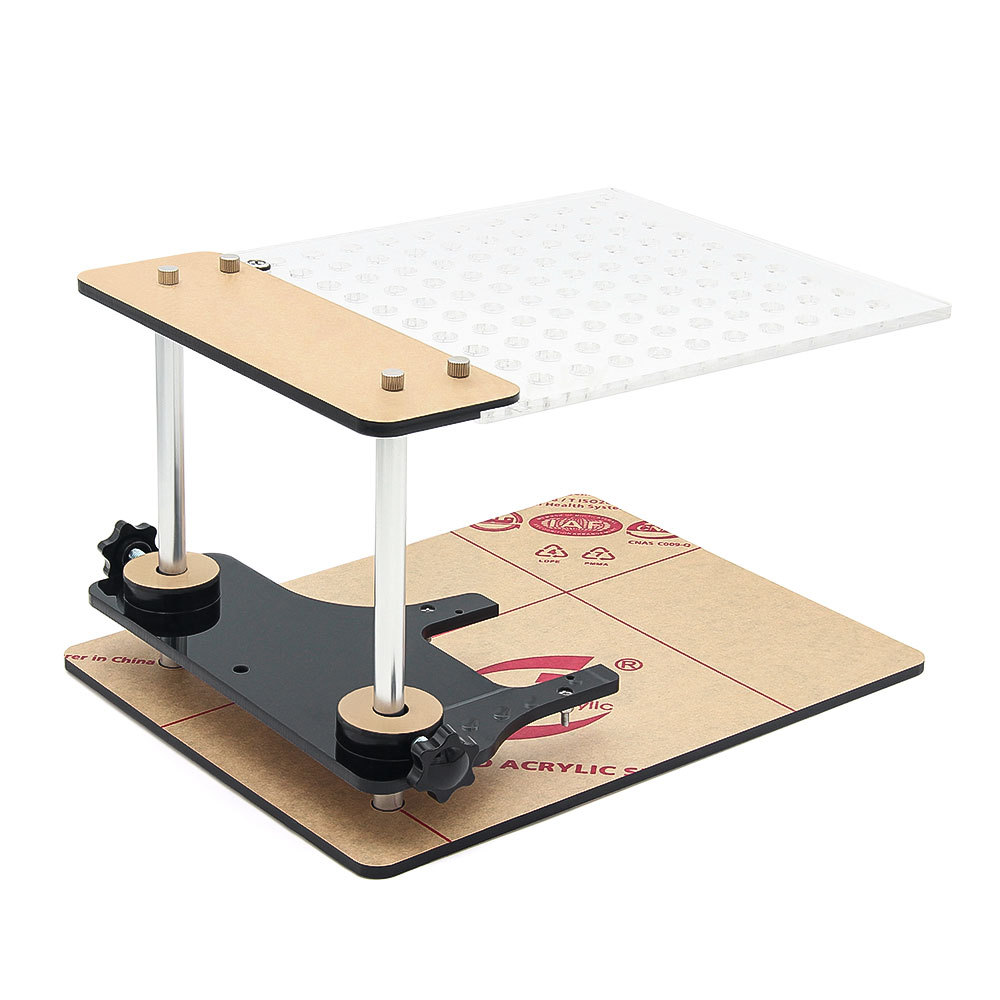

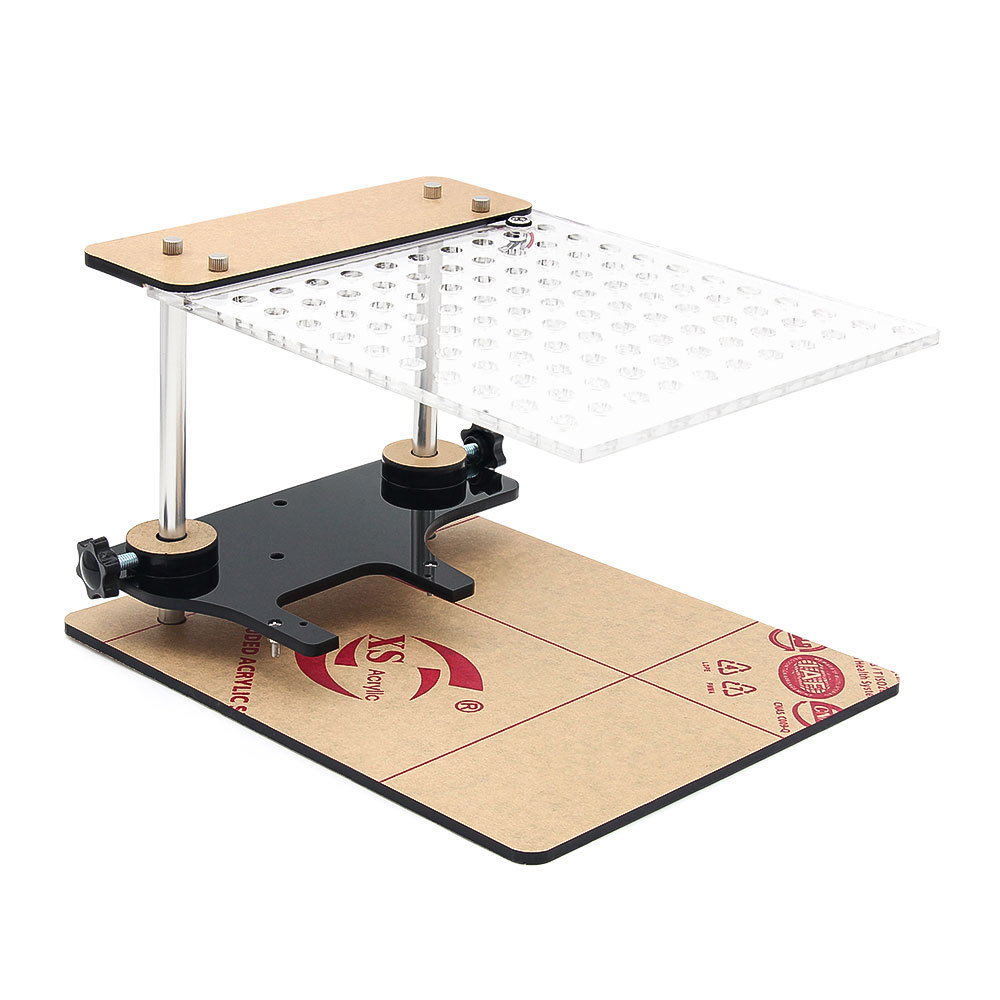

注意：支架底座是黑色的，亚克力板是透明的（如下图），图片看到的贴着纸和蓝色的薄膜 都是为了保护主体不被刮伤，并非颜色展示。PCB是效果展示，出货不配。

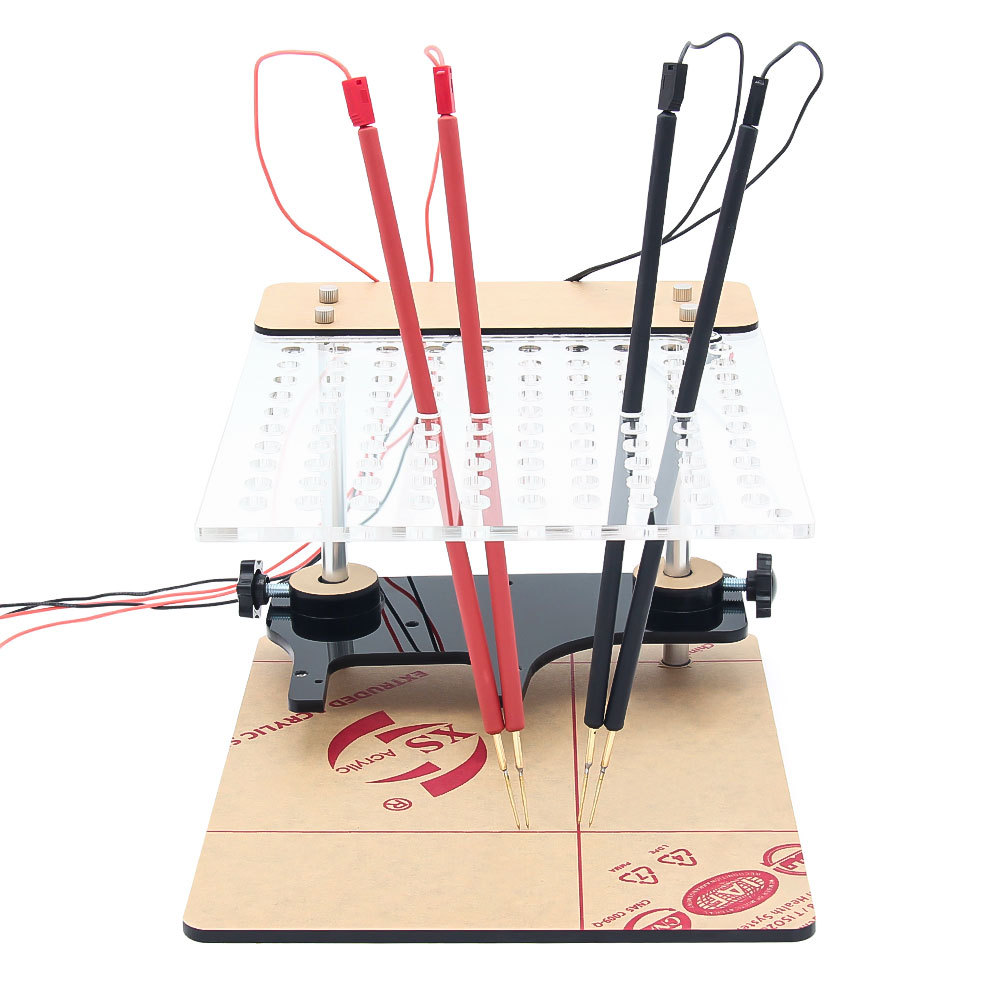

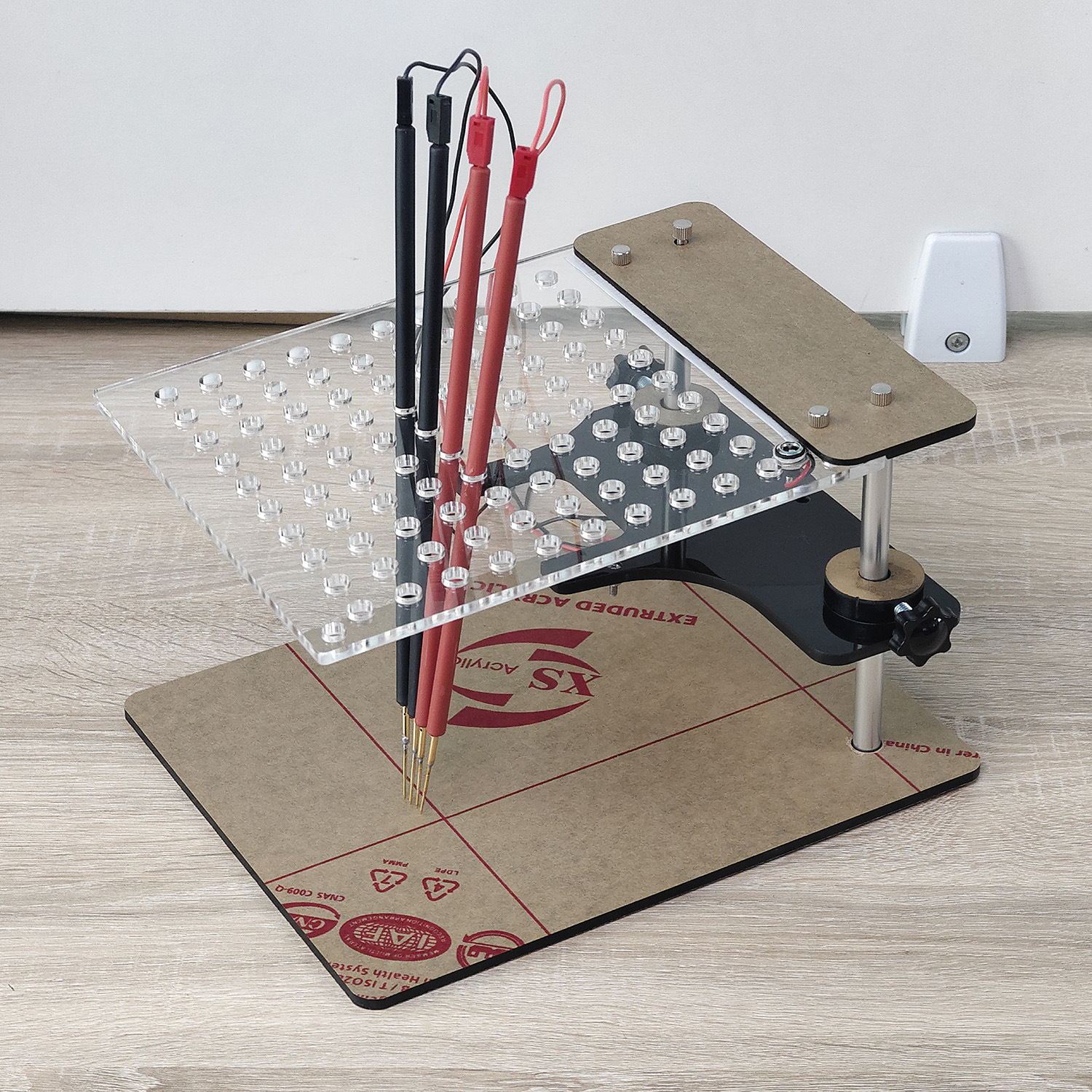

多功能汽车ECU刷写测试架

升级版多功能汽车ECU刷写测试架可以安装快速编程转接板，方便用户连接ECU的快速编程接口，快速稳定的实现ECU刷写编程。可搭配等主流设备使用。
升级版多功能汽车ECU刷写测试架功能用途广泛可以用于汽车ECU刷写数据，工具改装升级编程，汽车钥匙读写编程，遥控器编程,VVDl编程等测试功能。
新款BDM FRAME套装适合原装FGTECH
新型BDM FRAME套装采用高品质有机玻璃制成，可用于BDM100编程器，CMD，ETC。）
它适用于fgtech和bdm100程序员。 ECU芯片工具， ECU工具ktm100

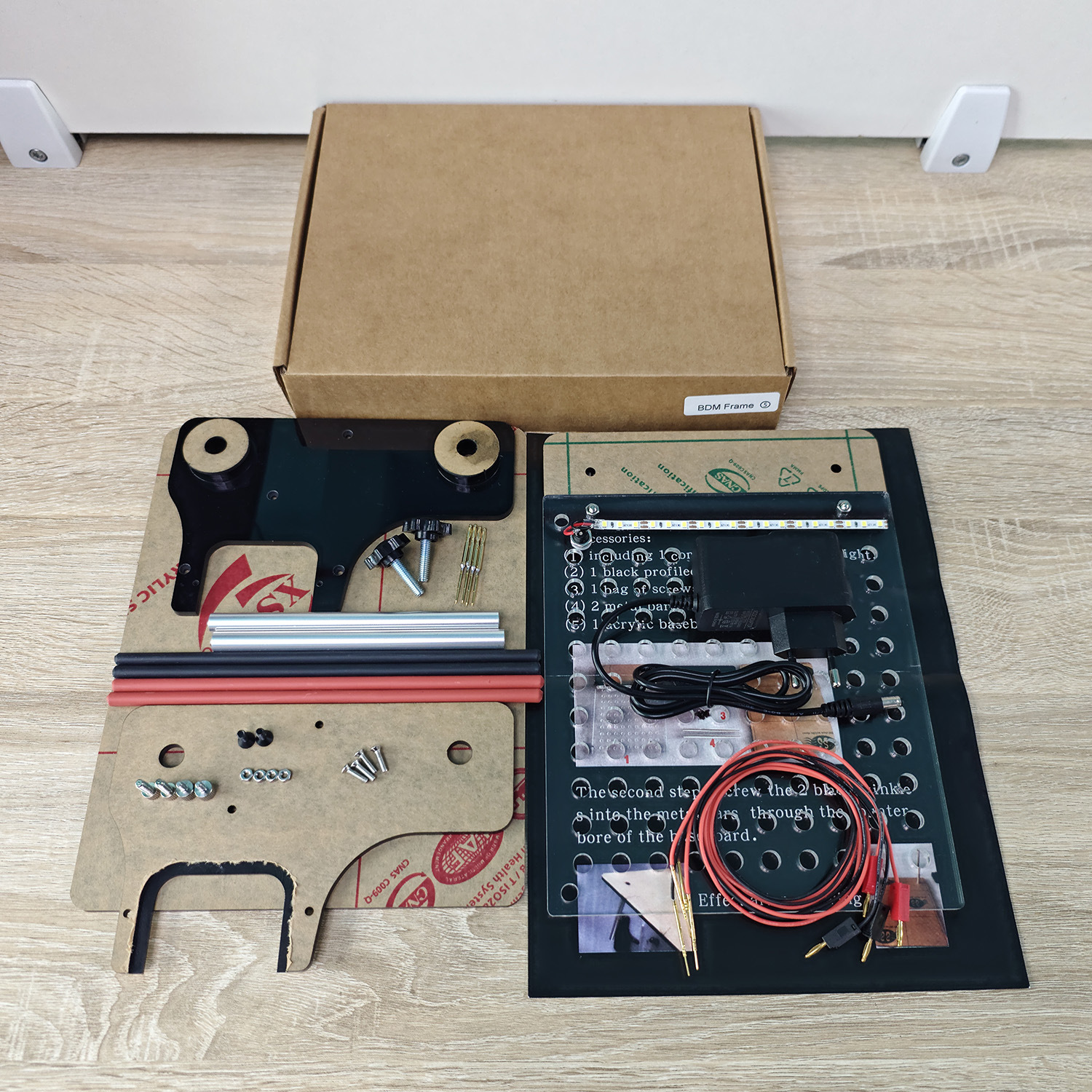

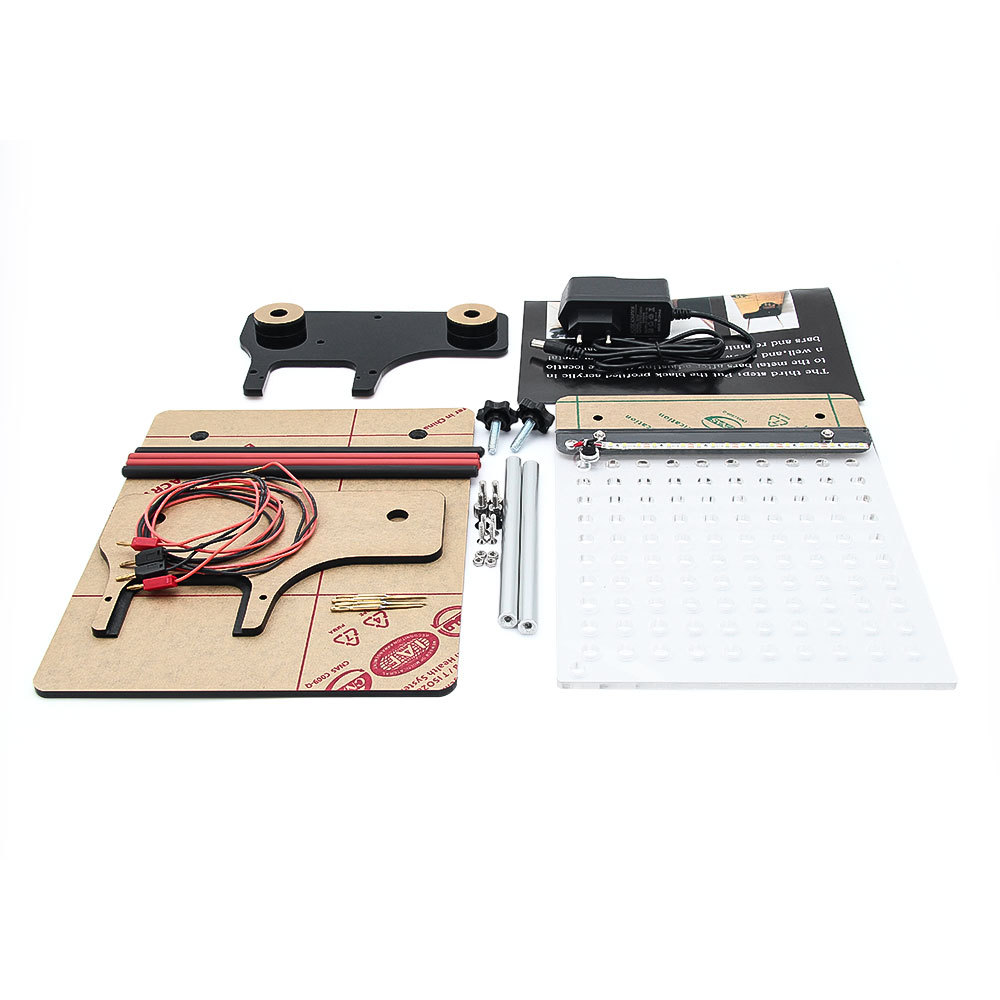

标准配置清单
1.一台主测试架（组装件）
2.铜针4根（两红两黑）
3.连接线4根（两红两黑）
4.探针4根（两根细针两根粗针）
5.电源适配器一个（12V 500MA）
6.安装说明一份
Multi-function car ECU brush test stand
The upgraded version of the multi-function car ECU brush writing test stand can be installed with a quick programming adapter plate, which is convenient for the user to connect to the ECU's quick programming interface, and realize the ECU brush writing programming quickly and stably. It can be perfectly matched with mainstream devices such as
The upgraded version of the multi-function car ECU brush test stand function can be widely used in car ECU brush write data, tool modification upgrade programming, car key read and write programming, remote control programming, VVDl programming and other test functions.
New BDM FRAME Set Fit Original FGTECH
New BDM FRAME Set made from hight quality Plexiglass ,can use on BDM100 programmer , CMD,ETC. )
It works for fgtech and bdm100 programmer . ECU chip tool , ECU tool

Standard configuration list
1. A main test stand (assembly)
2. 4 copper needles (two red and two black)
3. 4 connecting lines (two red and two black)
4. 4 probes (two fine needles and two thick needles)
5. Power adapter one (12V 500MA)
6. Installation instructions

Attention :this is only bdm frame , it use for ECU programmer tool. if you want the ecu tool , pls tell us , this product don't include product.
