KTAG KESS KTM adaptor BDM, alat penyesuaian CIP Trasdata set penuh 22 adaptor

BDM FRAME with Adapters Set, made from hight quality stainless steel,can use on BDM100 programmer,KESS V2, Ktag, Fgtech,CMD,ETC.

LED BDM Frame with Mesh and 4 Probe Pens for FGTECH BDM100 KESS KTAG K-TAG ECU Programmer Tool.

Tip:

No PCB in this package! LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.

LED BDM Frame Description:

1. It consists of a Acrylic board, Mesh and 4 Probe Pens.

2. LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.

3. It is the best bracket for ECU Update/ECU Brush and Write/ECM Modified and programming/Probe holder/Dimsport aids.

4. It works with KESS, KTAG, FGTECH, BDM100, KTM100, CMD, DIMSPORT AIDS, and othe ECU chip tuning tools.

5. It is easy to use, much better than the old bdm frame.

Package List:

1pc x BDM frame

1pc x Bdm frame with LED (Made by a Acrylic board)

4pc x Cable for Probe

4pc x Probe

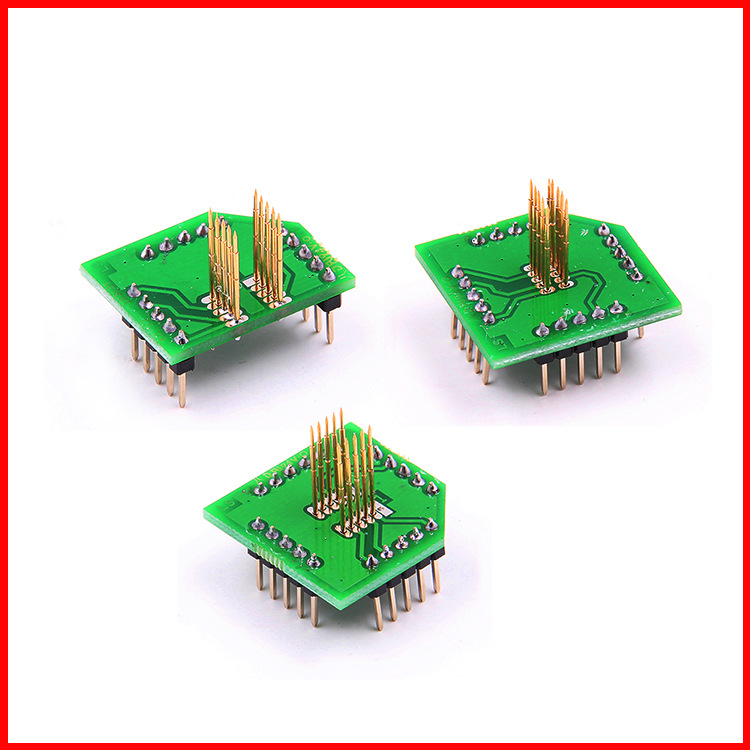

This is a full set of BDM adapters for K-TAG/KESS /KTM/Trasdata chiptuning tool.

KTAG KESS KTM Dimsport BDM probe adapters full set for Denso, for Marelli, for Bosch, for Siemens

Features:

Adapter width: ~60mm width for original BDM Probe, not for low quality plastic with 40mm width.

Adapter thickness: 2mm

Adapter colour: Green

A full set comes with 22 BDM adapters.

Package includes:

1 14AM00T01M for Bosch

2 14AM00T02M for Delphi DCM

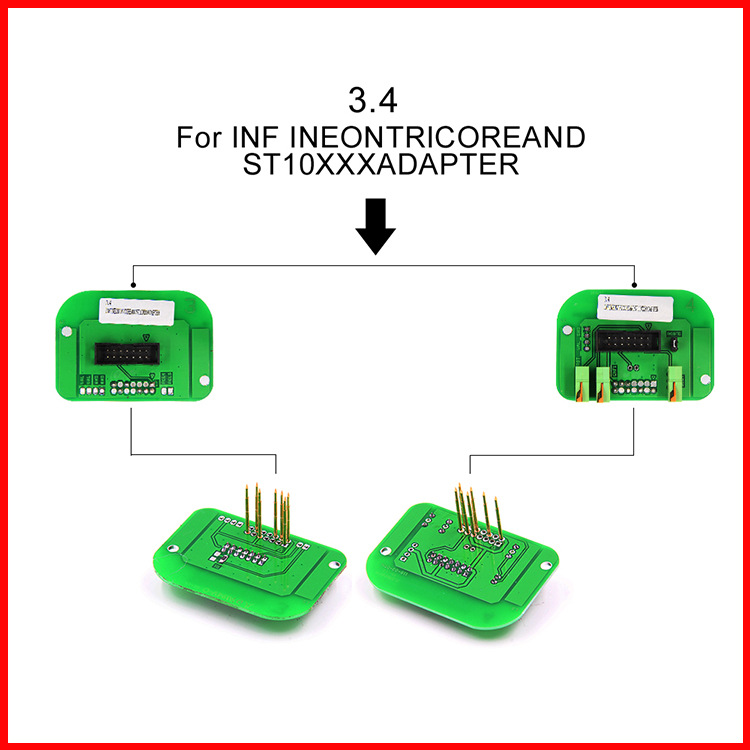

3 14AM00T03M for Bootloader ST10xx

4 14P600KT04 for Infineon Tricore EDC/MED17

5 14AM00T05M for Marelli MPC55xx JTAG

6 14AM00T06M for Delphi MPC55xx JTAG

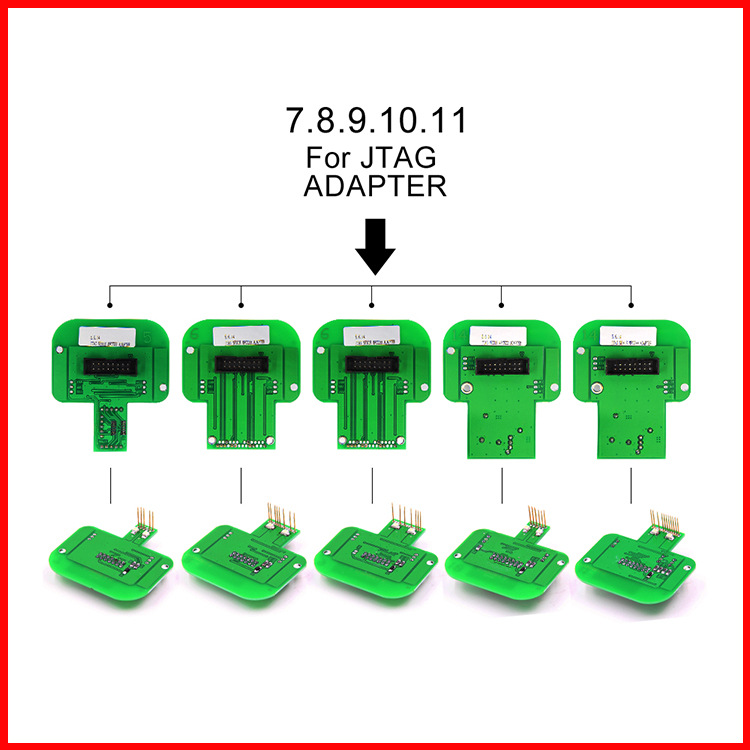

7 14AM00T07M for Denso CN1 Boot

8 14AM00T08M for Denso CN2 Boot

9 14AM00T09M for Denso CN3 Boot

10 14AM00T10M for Denso CN1 AUD

11 14AM00T11M for Denso CN2 AUD

12 14AM00T00M for Delphi DCI

13 14AM00TBAS for Base Adapter 1.27

14 14AM00T14M for NexusEFI T6 Lotus

15 14AM00TB02 for Magneti Marelli BDM insert

16 14AM00TB01 for Siemens BDM insert

17 14AM00TB03 EDC7 BDM insert

18 14AM00T18M for Magneti Marelli MPC/SPC56xx

19 14AM00T13M for Nexus MPC5xx TRW ECU

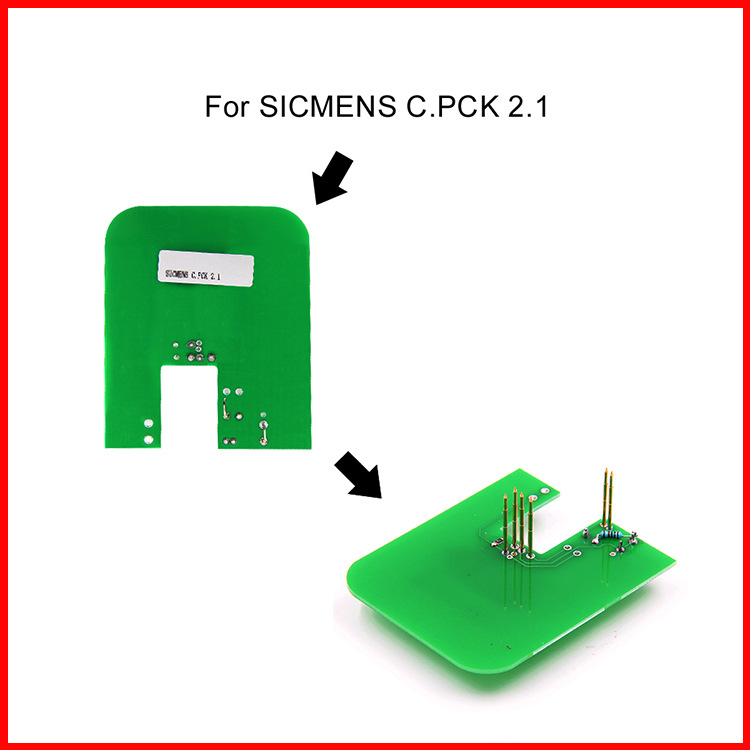

20 VAG 1.6tdi for Siemens-Continental PCR2.1

21 14AM00T15M for Toyota NEC76F-20

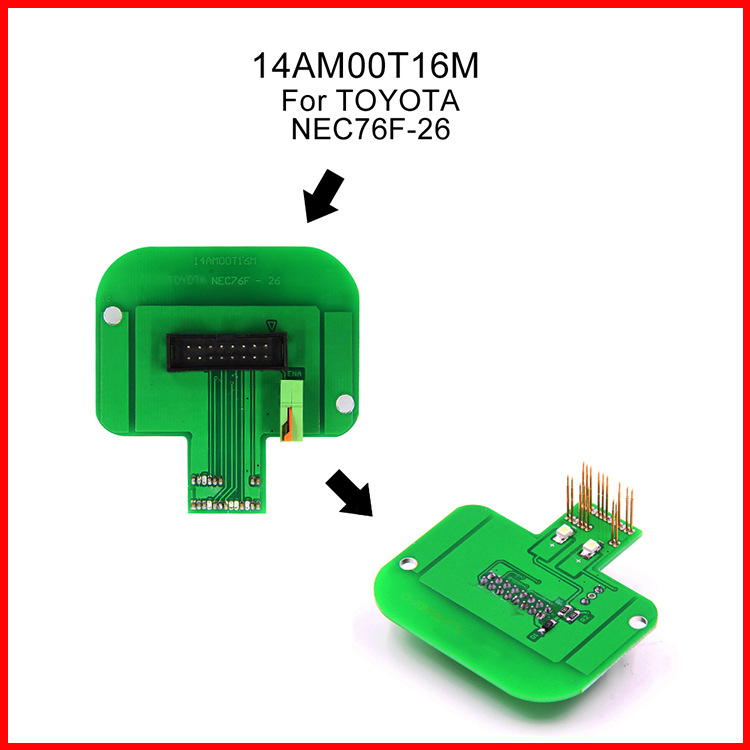

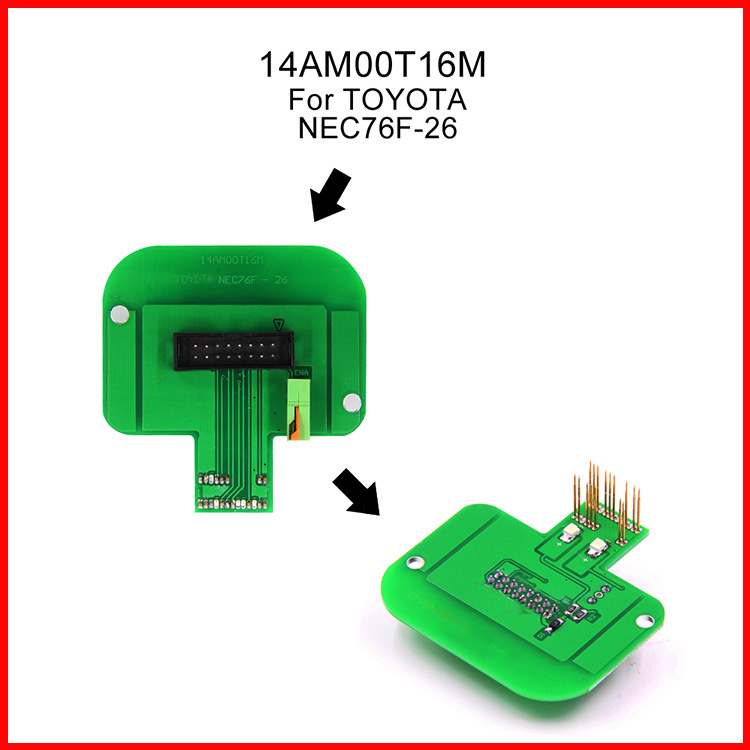

22 14AM00T16M for Toyota NEC76F-26
