Lexia-3 lexia3 V48 Citroen/Peugeot Diagnostic PP2000 V25 XS Evolution with Diagbox V9.85 Software

安装系统：win7 32位和XP系统

安装步骤请参照软件内赠送的diagbox安装视频进行安装

Notice:

1. PP2000 and lexia softare only be installed in XP system 32 bit,

Diagbox software only be installed in win7 system 32 bit.

2. Pls don't install lexia and pp2000 software together with Diagbox software in one pc.

Diagbox software has included pp2000 and lexia software, Diagbox need be installed in one laptop individually.

3. When installing software, pls close your anti-virus software and firewall.

otherwise anti-virus software and firewall will destroy software and your pc system .

Support Multi-Language:

English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech

Version:

Lexia-3 V48,PP2000 V25,Diagbox V9.85

Support Peugeot 307

Lexia 3 Description:

1.It is compatible with Citroen cars including: C1,C2,C3,C4,C6,C8,C-CROSSER,NEMO,BERLINGO,JUMPY,JUMPER,AX,SAXO,BX and so on. But please pay attention, according to our customer's experience, this item can not works good at C5 new models.

2.It is compatible with most Peugeot cars from 1995..If you have the two types of cars, please pay attention, please check with us first before purchase.

3.Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

LEXIA-3/PP2000 Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read Identification

Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read Fault Codes

Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").

Program supports report printing or copy to clipboard.

3. Clear Fault Codes

this function clears all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)

Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values

Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator Test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

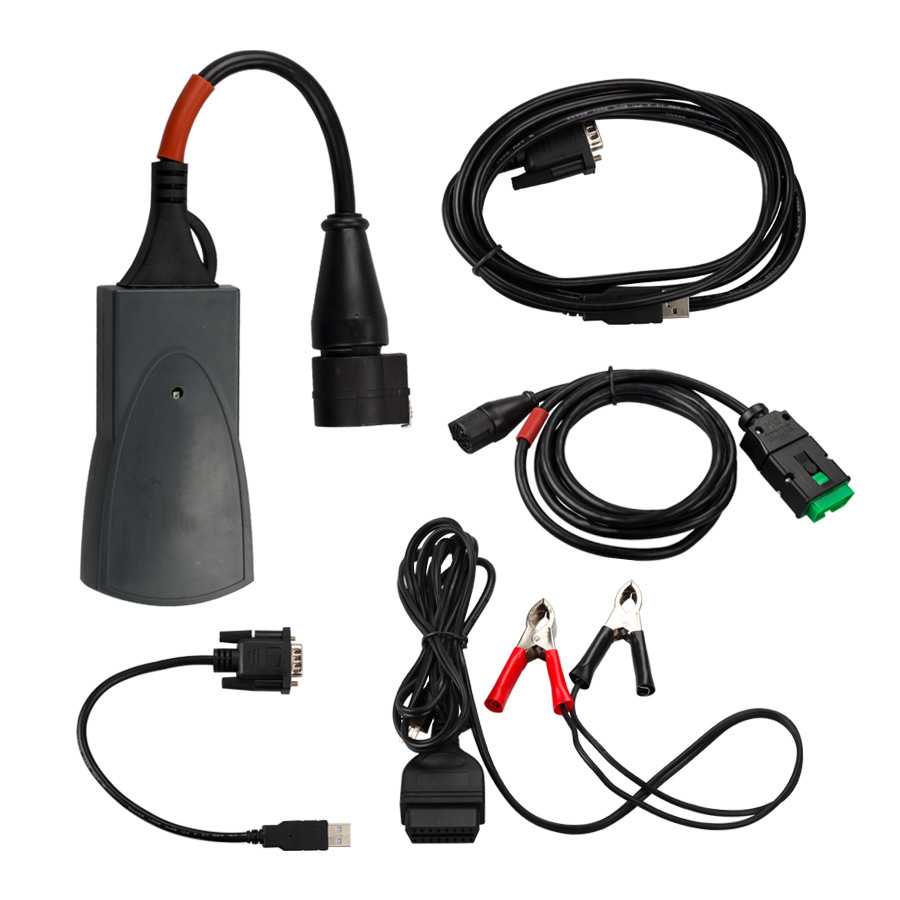

LEXIA-3/PP2000Package List:

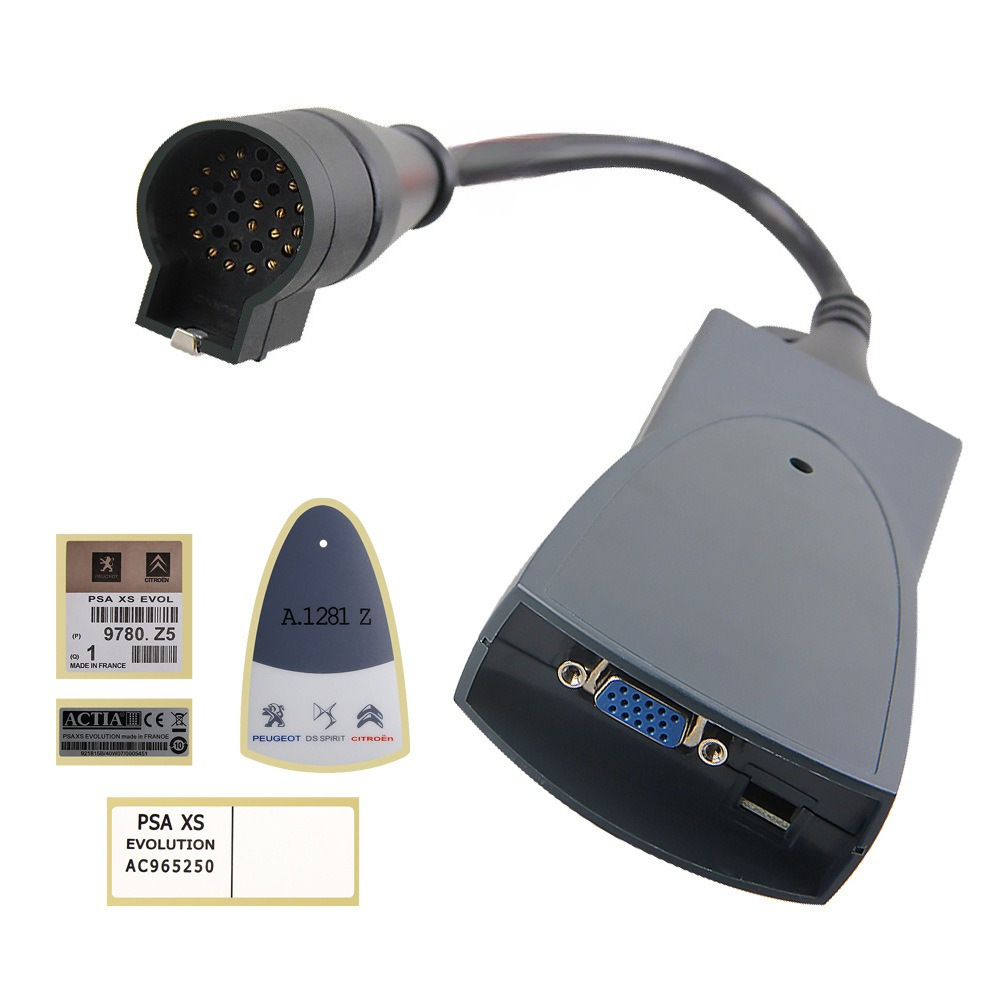

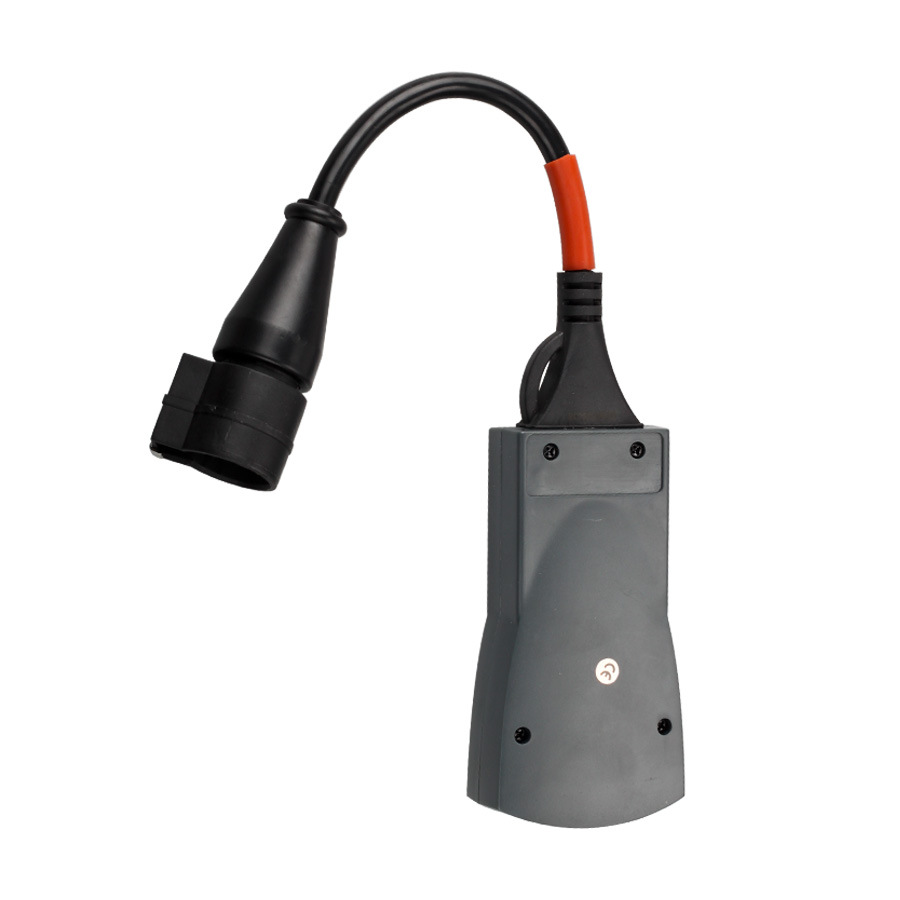

1pc x Main unit with extension OBD2 cable

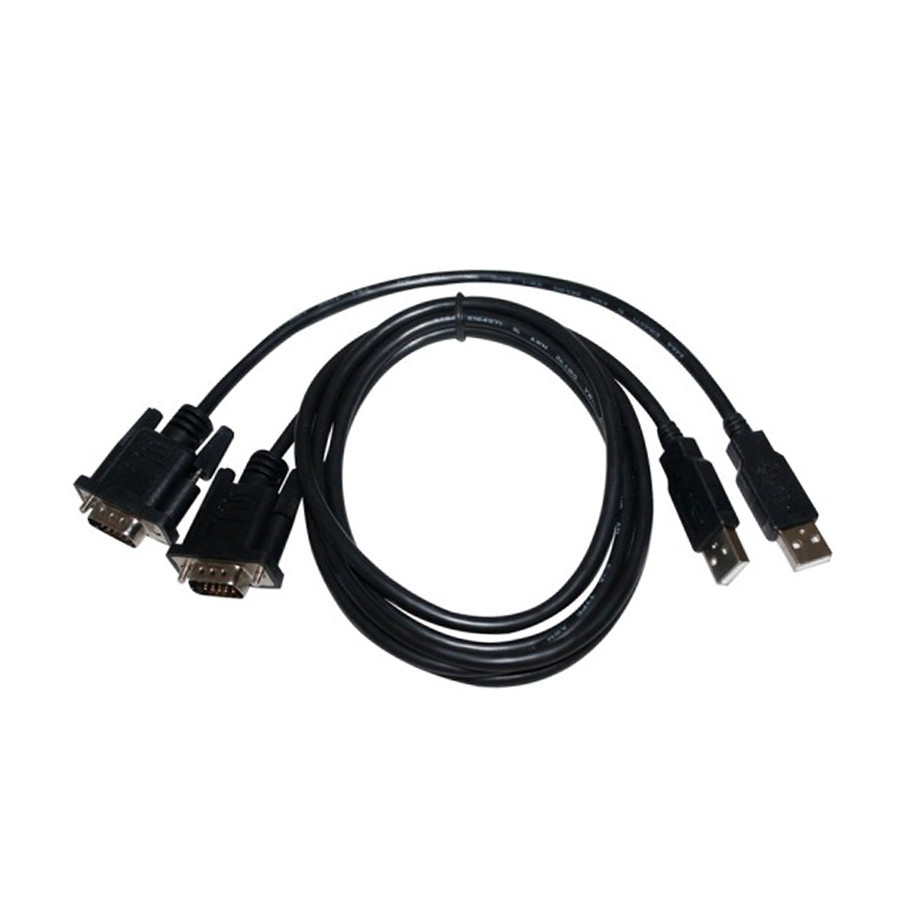

1pc x Long 9pin to USB cable

1pc x Short 9pin to USB cable

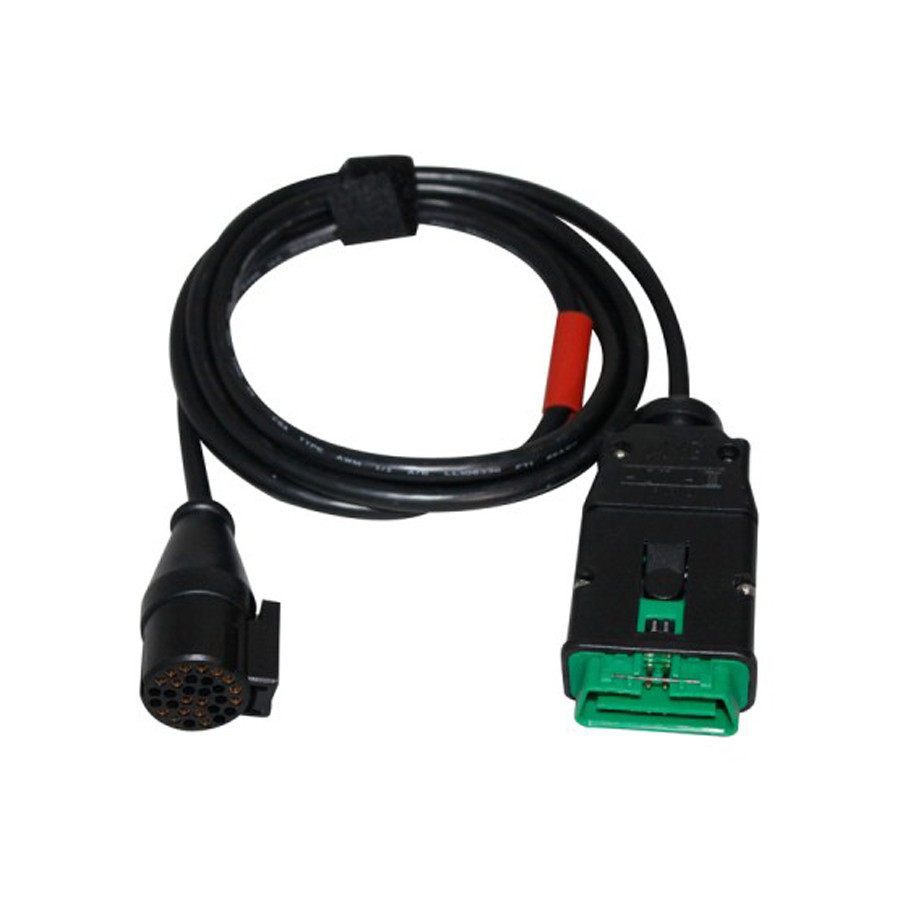

1pc x OBD2 cable

1pc x 16pin to Clip Cable

1pc x Instruction for Installation and Activation DVD for PP2000
