Dapat menyaring 18 in 1 Untuk Benz BMW universal Filter filter Filter

10*5*2cm 0.035kg

注意：3款产品不分好坏，只是ic和方案的一些细微差异而已，根据自己喜好购买即可！

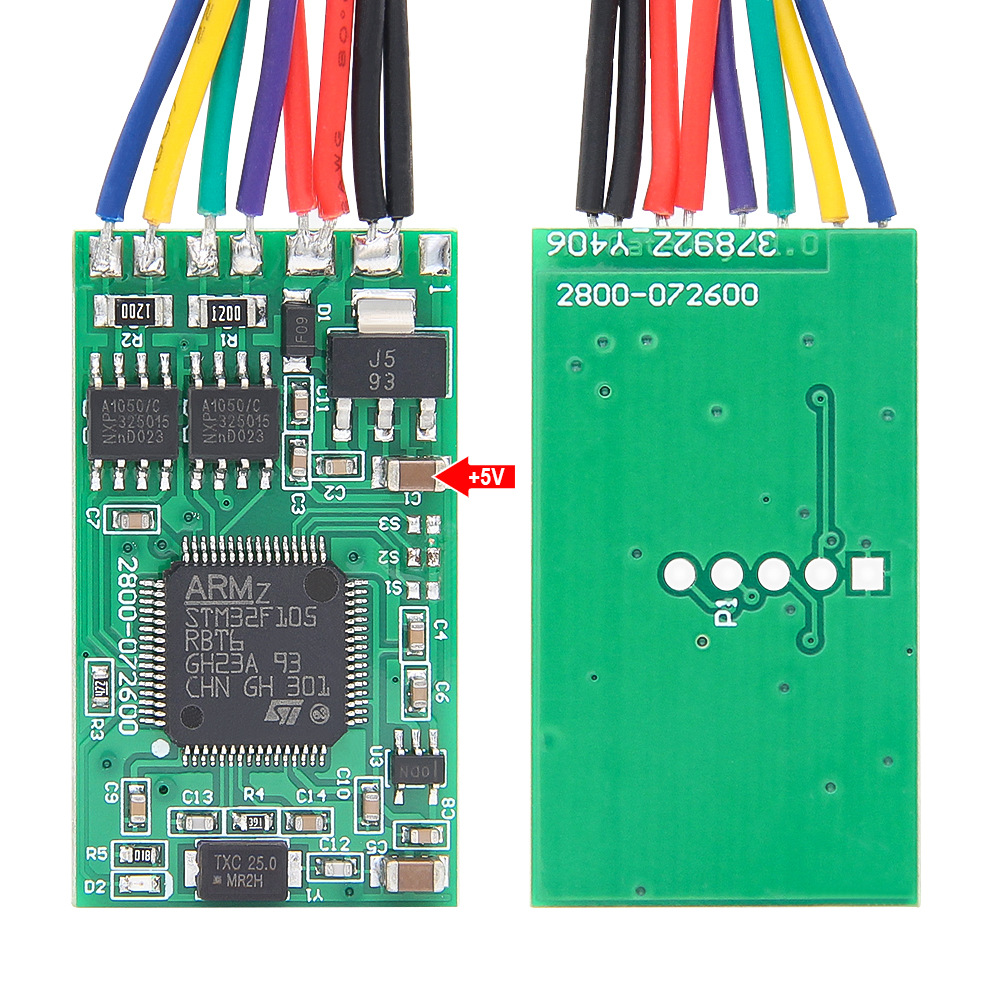

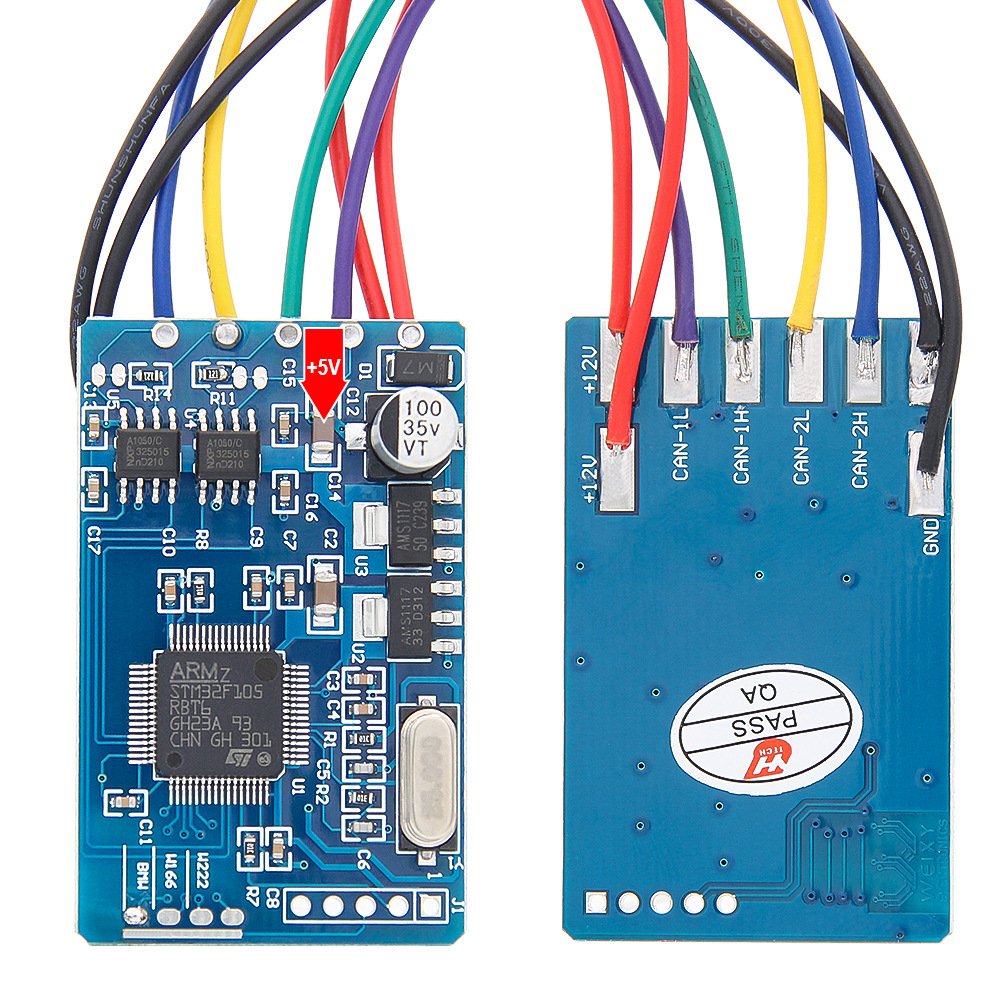

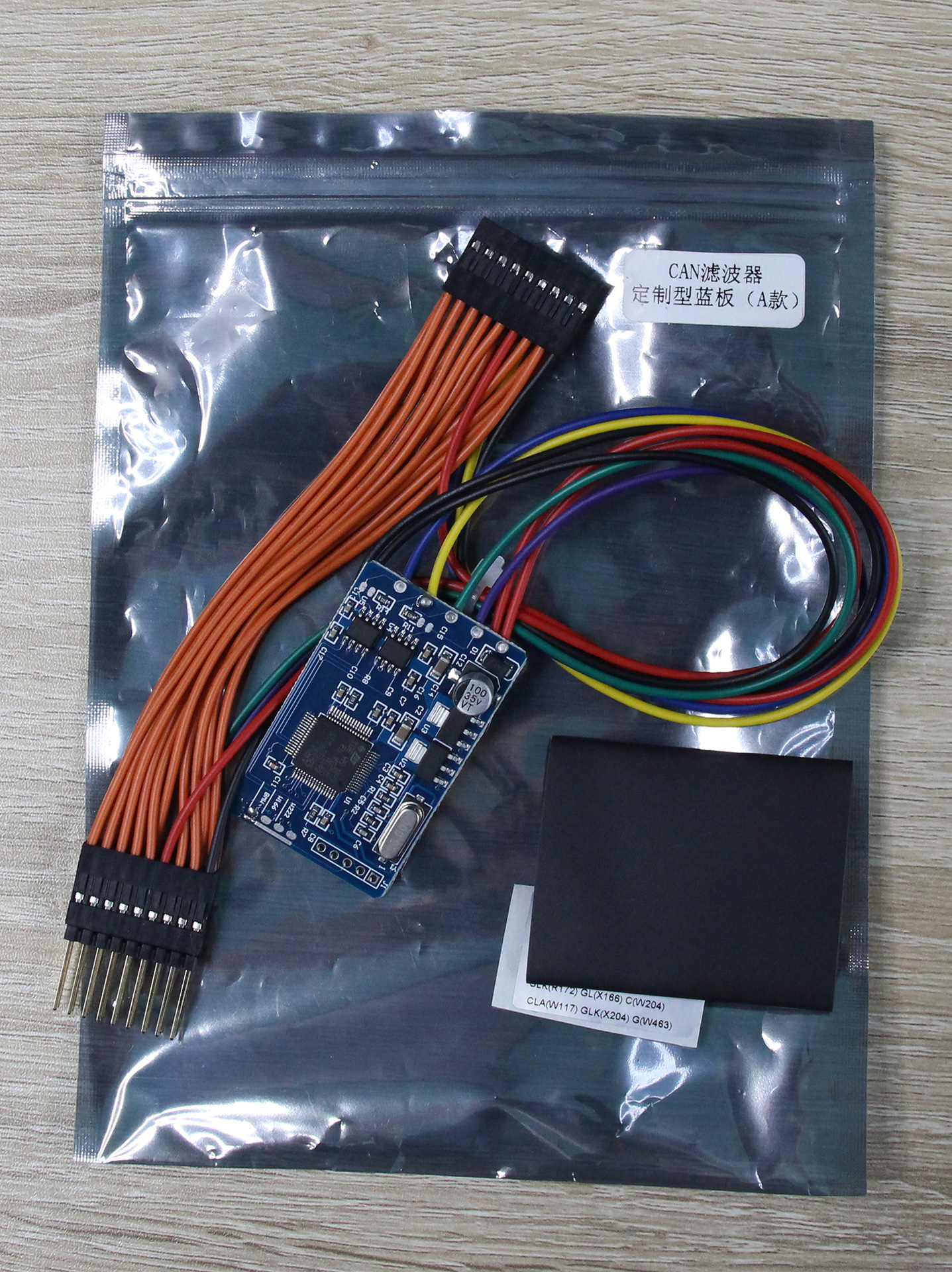

Type A(A款)：

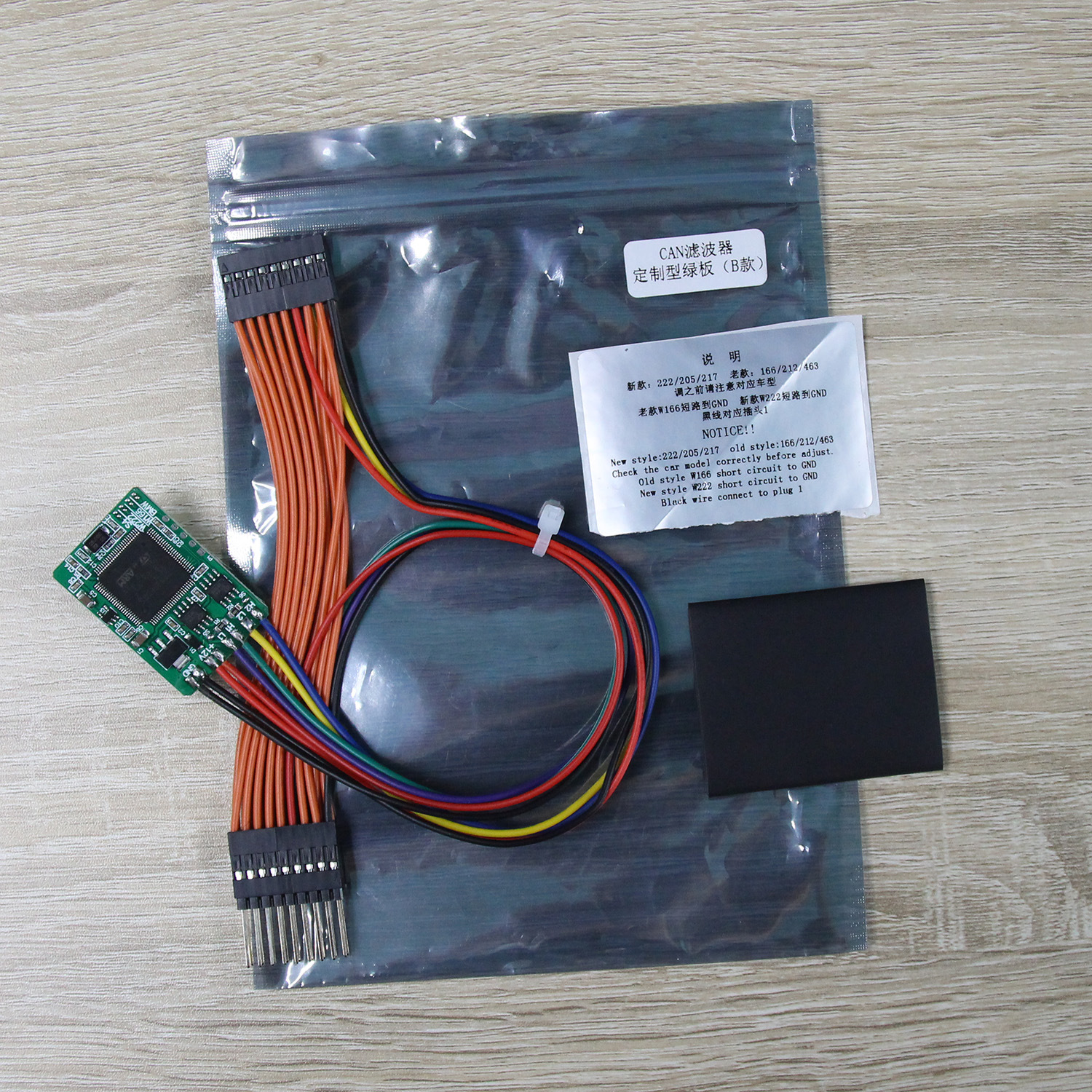

Type B(B款)：

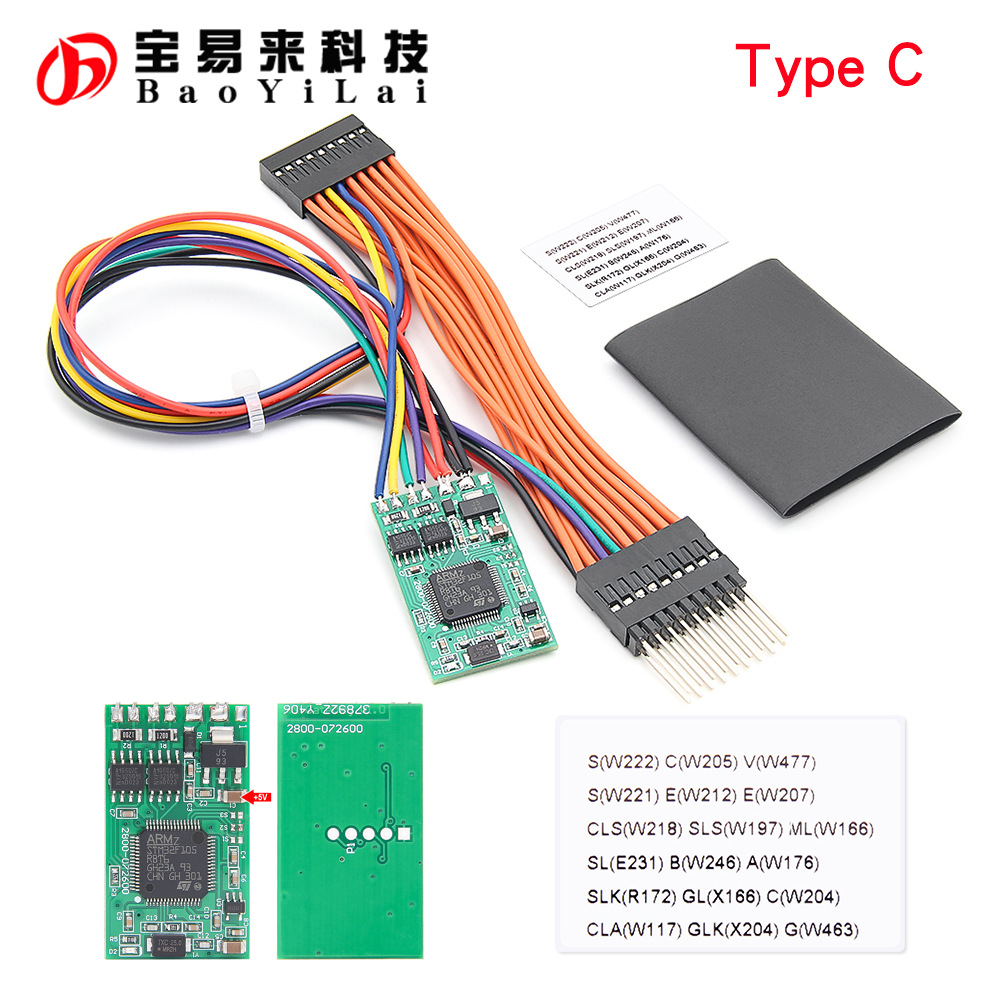

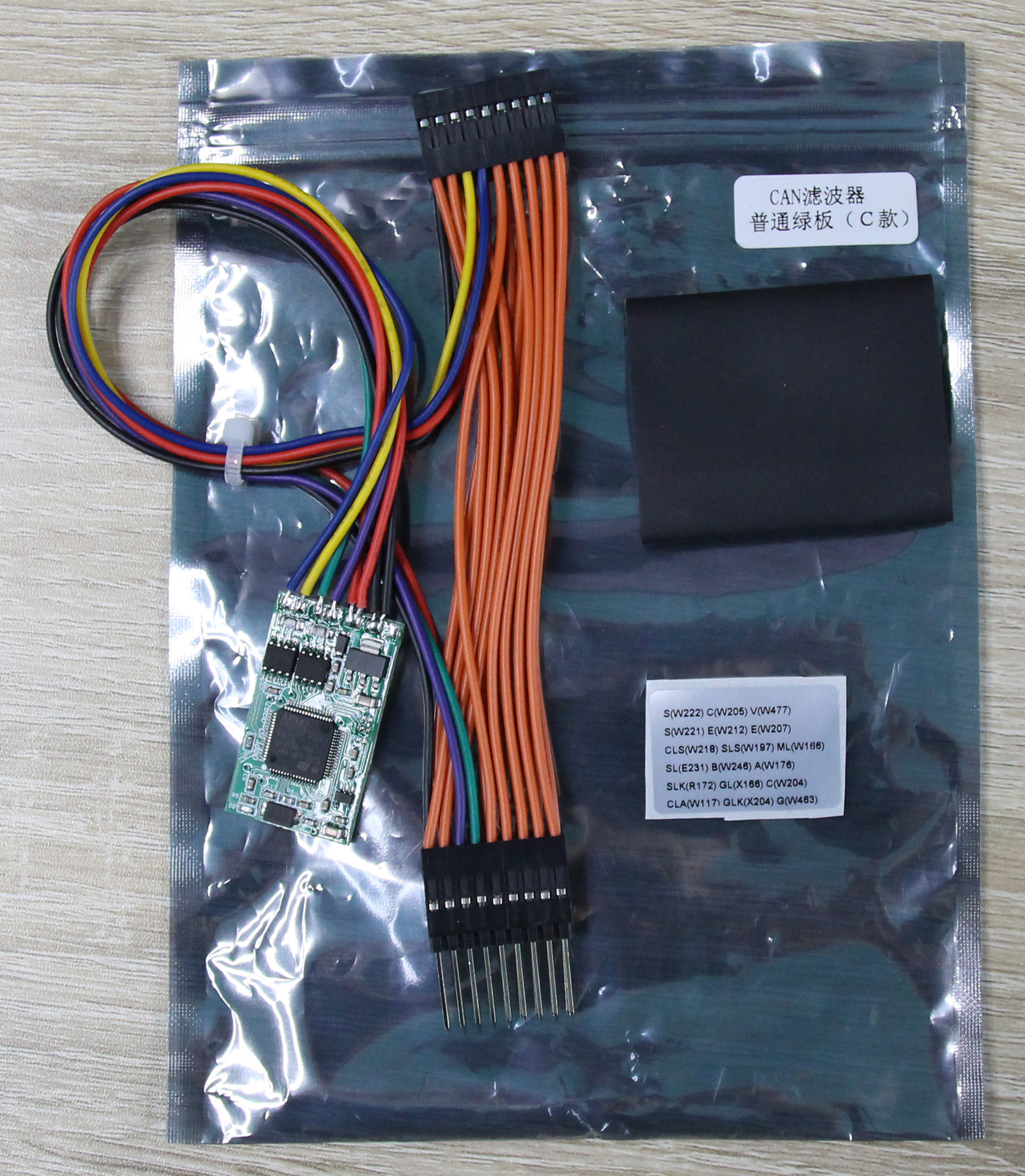

Type C(C款)：

This CAN Filter 18 in 1 for Benz and for BMW universal filter should be added to the car after odometer adjustment for most chassis models. But for W222/W205/W447 models, CAN filters should be added before odometer adjustment.

This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

CAN Filter 18 in 1 for benz and for BMW vehicle list:

A. For Benz Model:
18 types chassis model for benz : S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)

NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before mileage adjustment.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

2. For BMW Model:
For BMW: CAS4/FEM Fxx
For BMW 1 series F2X, 3 series F3X, X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
For BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).
NOTICE! Please connect the 2 BMW dots together (short circuit) BEFORE connection to the car!

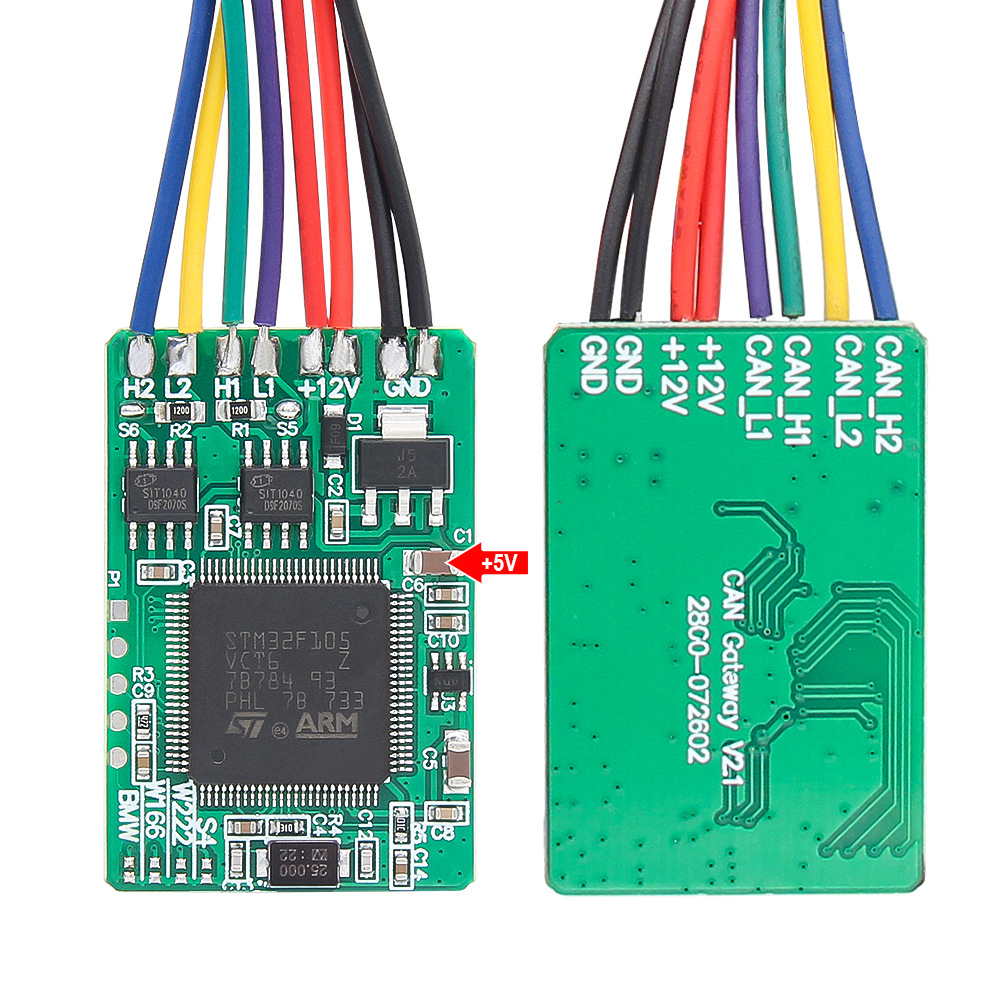

Here is the wiring diagram:
Black --------- GND Red --------- +12V
Purple -------- L1(CAN_L1) Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2) Blue --------- H2(CAN_H1)

Package List:
1pc x 18 in 1 Universal filter
