Float BUQK-02 baja tahan karat, 1KW 2KW 3KW kontroler level tahan ledakan pengiriman satu buah

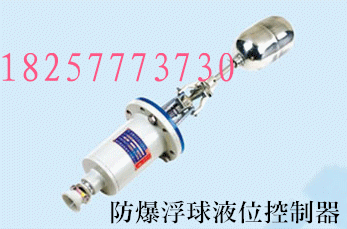

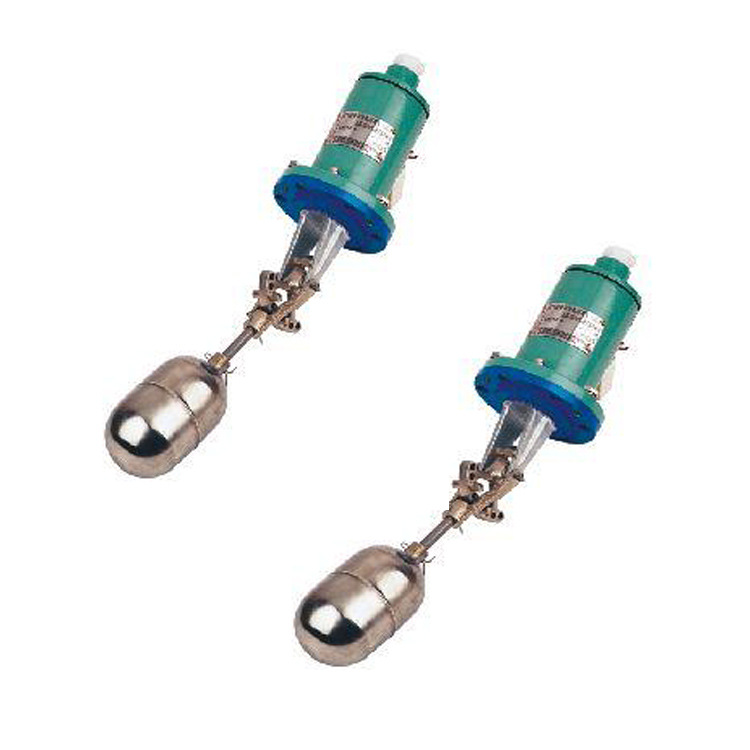

不锈钢BUQK-02防爆浮球液位控制器外形：

不锈钢BUQK-02防爆浮球液位控制器型号含义：

一、不锈钢BUQK-02防爆浮球液位控制器适用范围 Applications

1.1区、2区或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或或燃性粉尘环境;
3.温度组别：T1~T4;
4.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1&2 or zone 20、21、22；
2.Explosive gas or steam atmosphere: class ⅡA,ⅡB,ⅡCor flammable dust atmospheres;
3.Temperature class: T1~T4;
4.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

二、BUQK-02防爆浮球液位控制器产品特点 Features

1.产品由内装触点的隔爆壳体与浮球二大部分组成，浮球受液位的变化通过磁轴的摆动，实现对液位的报警控制；
2.隔爆壳体为铸铝合金铸造成型，表面喷塑；浮球为Gr18Ni19不锈钢制成；
3.浮球的动作部分与触头的隔离可避免液位控制器的渗漏。
1.The product is composed of float ball and flameproof enclosure which build-in contacts,the alarm control of liquid level
is realized by the swing of ball, that is swing by magnetic force axis;
2.The flameproof enclosure is cast with aluminium alloy ,and the surface is spayed with plastic.the float ball is made ofstainless Gr18Ni9;
3.The action parts of float ball is separated from the contactor,to avoid the leakage of liquid level controller

三、BUQK-02防爆浮球液位控制器主要技术参数 Main technical parameters

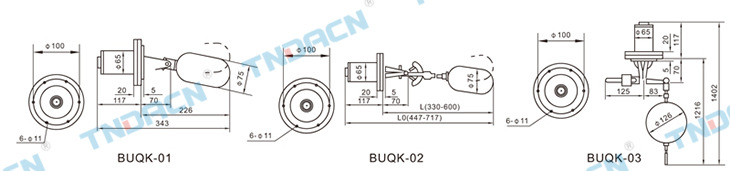

四、BUQK-02防爆浮球液位控制器外形及安装尺寸 Outline & installation dimensions

BUQK-02防爆浮球液位控制器厂家发货，一件代发。如有需要，请联系销售人员洽谈。18257773730靳经理。
