USB OBD 327 Dengan chip CH340T V1.5, detektor diagnosis kesalahan mobil kualitas tinggi ELM

14*11*3cm  0.09kg

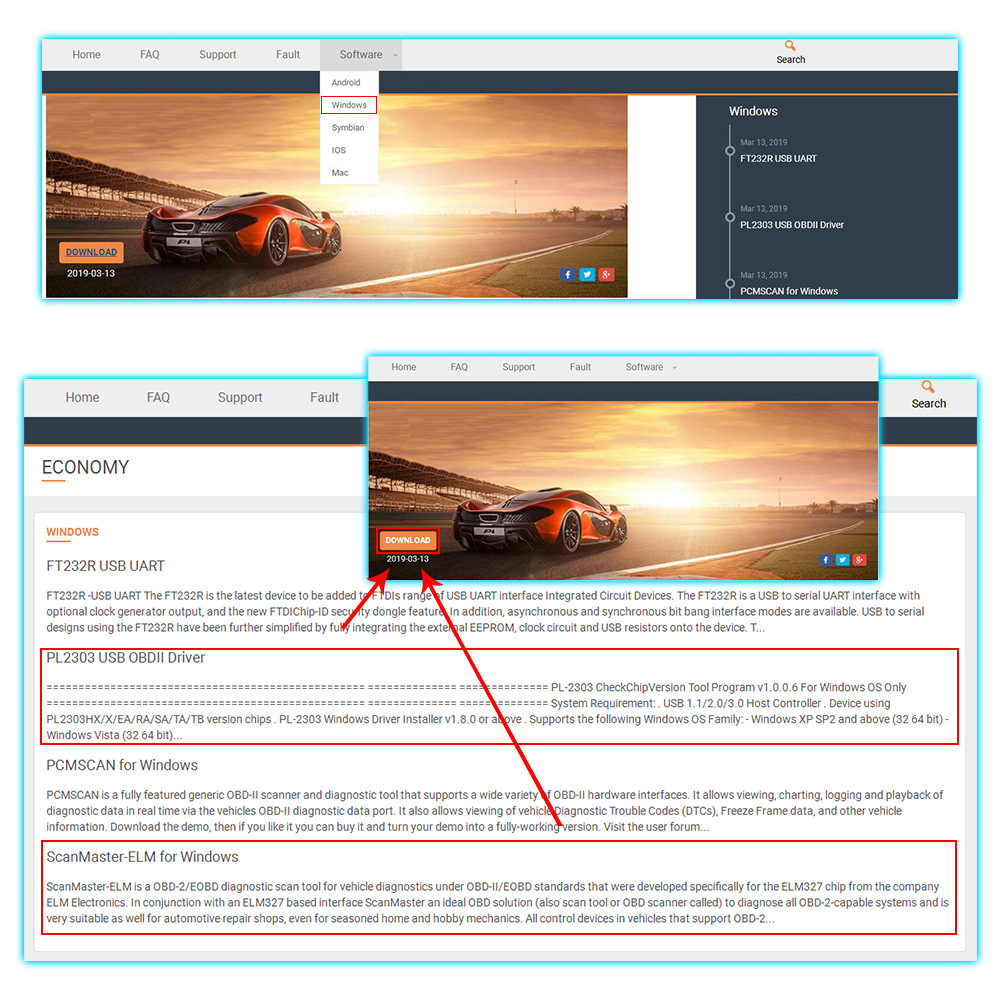

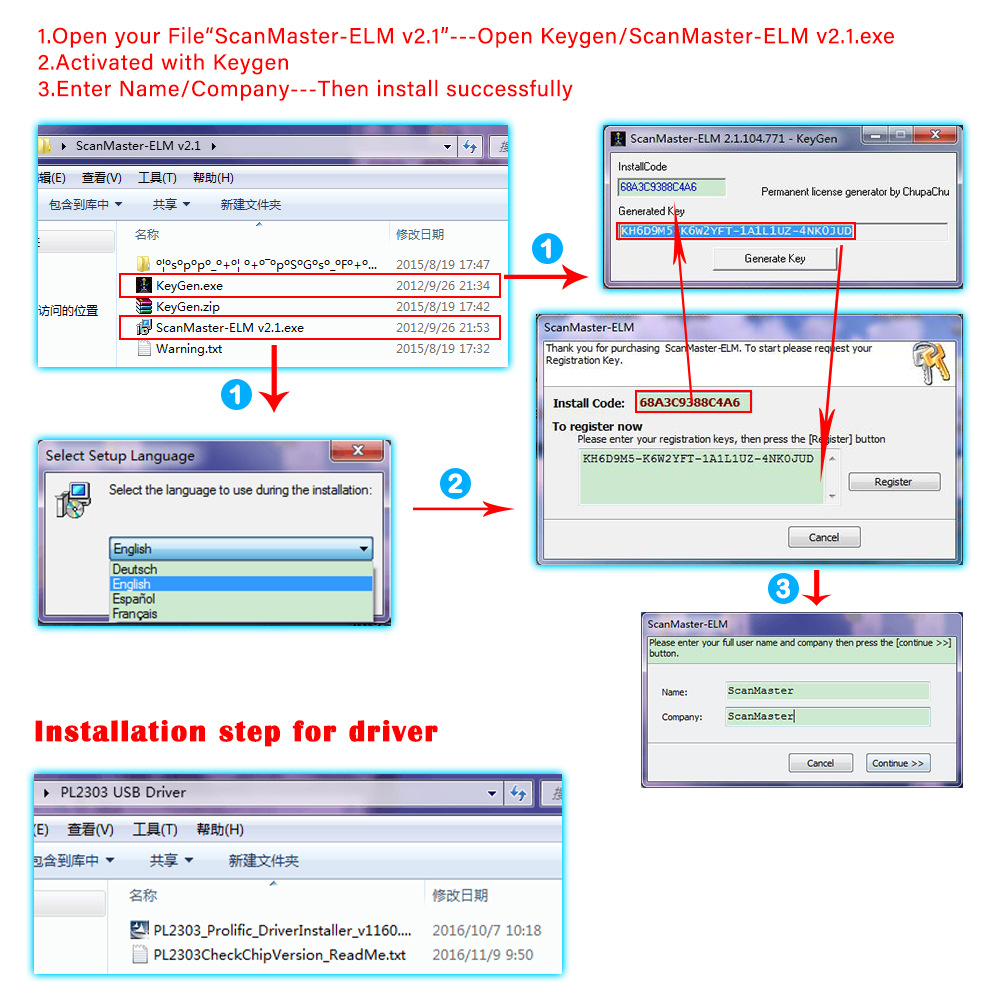

新包装，取消CD（部分国家不允许出CD），带英文说明书，软件通过说明书上网址去下载，且有相应的安装教程

MINI OBDII USB V1.5 Scanner for Multi-brands CAN-BUS as same as ELM327 USB. Supports All OBD2 Protocol works on Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

MINI OBDII USB Scanner for Multi-brands CAN-BUS as same as ELM327 USB

Top 4 Reasons To Get MINI OBDII USB V1.5 Scanner :

1. Software Version: V1.5 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. USB Cable

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

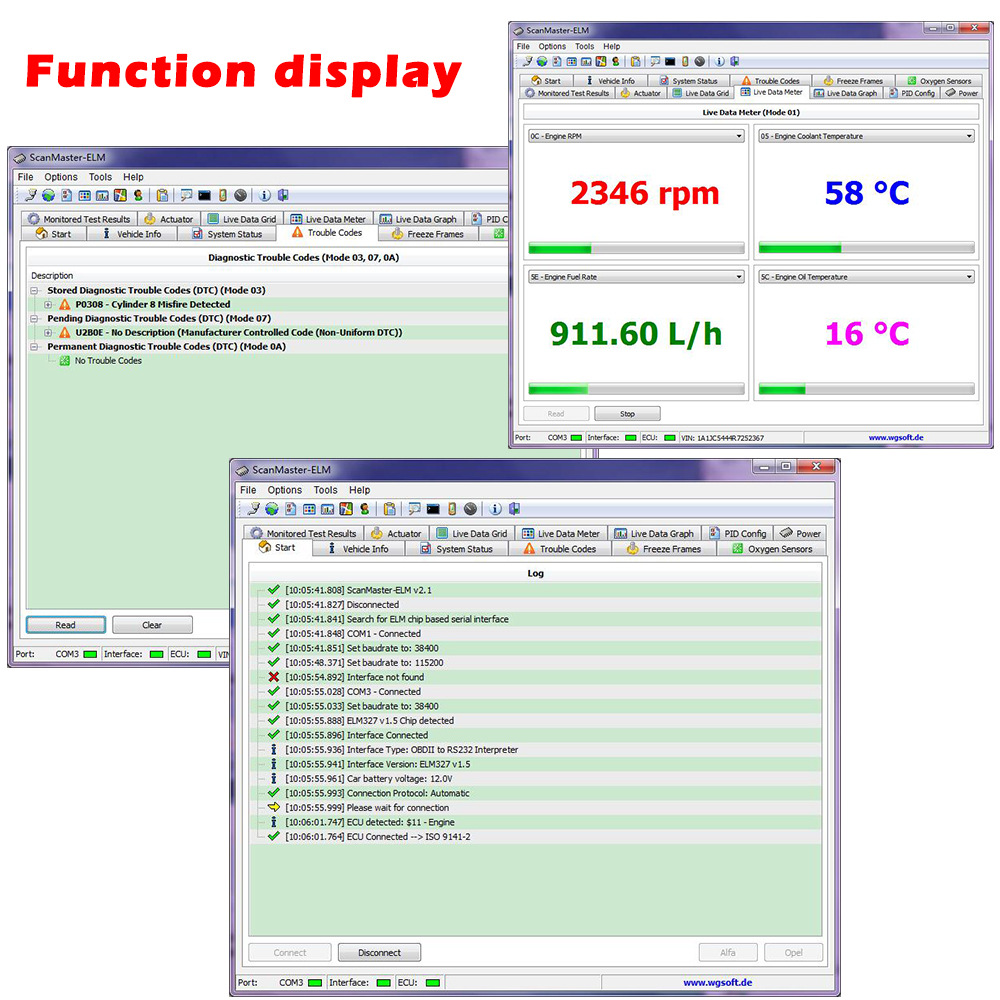

MINI OBDII USB Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ('Check Engine' light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

MINI OBDII USB Scanner Specifications:

Communication: USB Interface

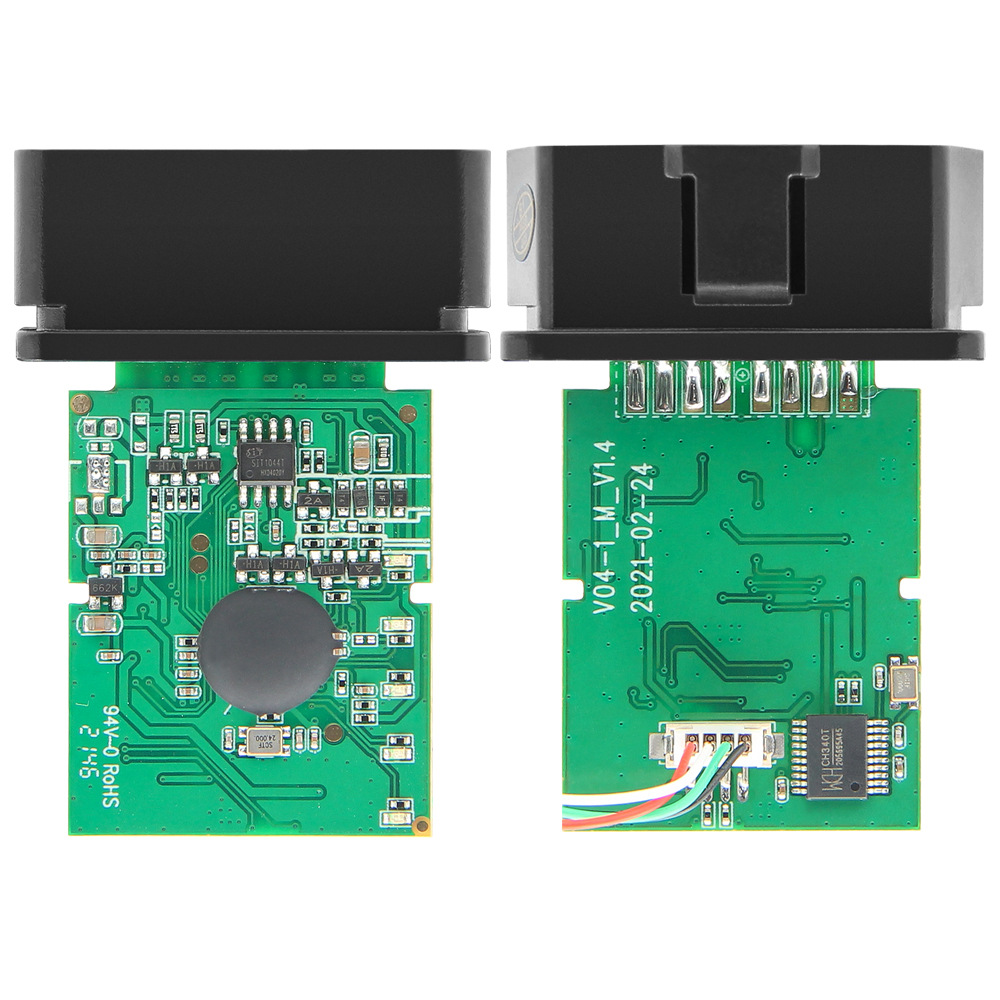

Master Chip:ST

Driver IC: PL2303

Support System: Windows

Working Voltage: 9v ~ 16v

Working Current: 15mA

Standby Current: 0mA

Operating temperature: -40℃~ 85℃

Working Humidity: less than 60%

Size: 45mm * 25mm * 75mm（Cable Length 1.5M）

Compatible systems:

Software support platform: Windows XP, Windows 7/8.

Compatible software:

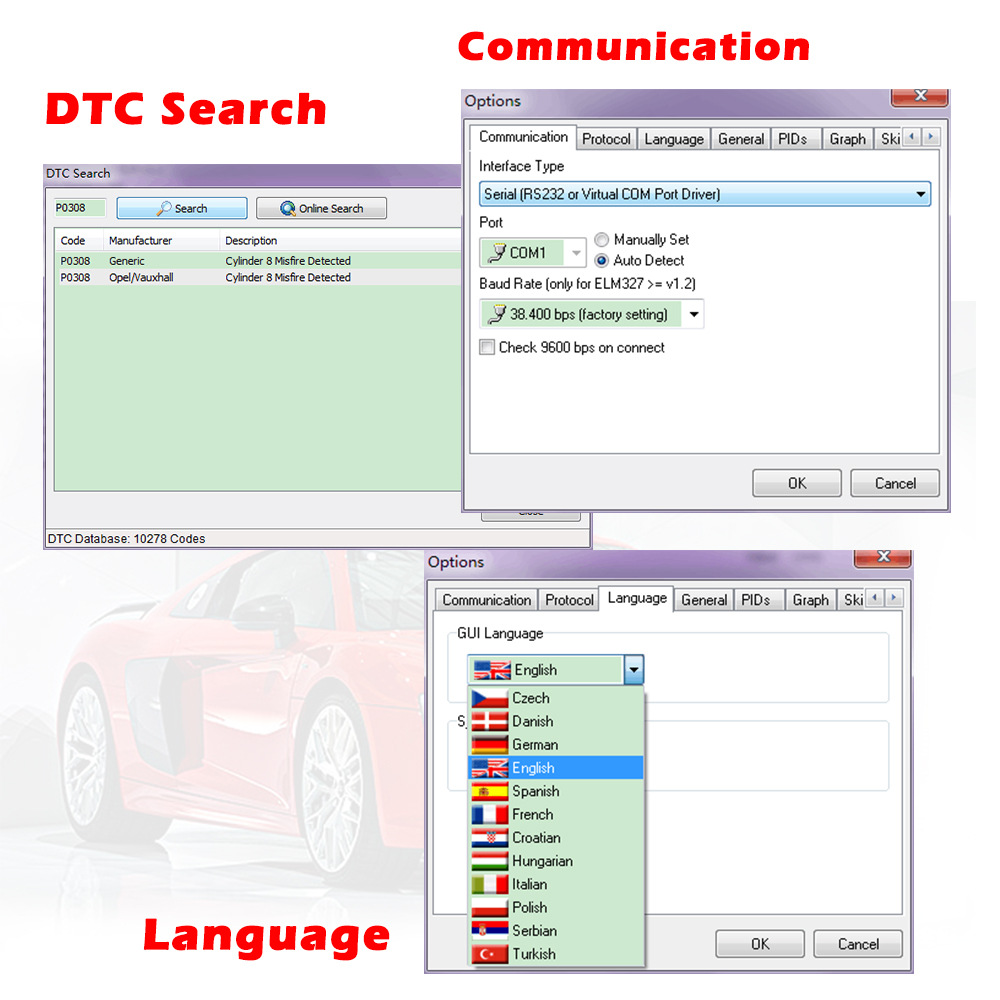

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

Package List:

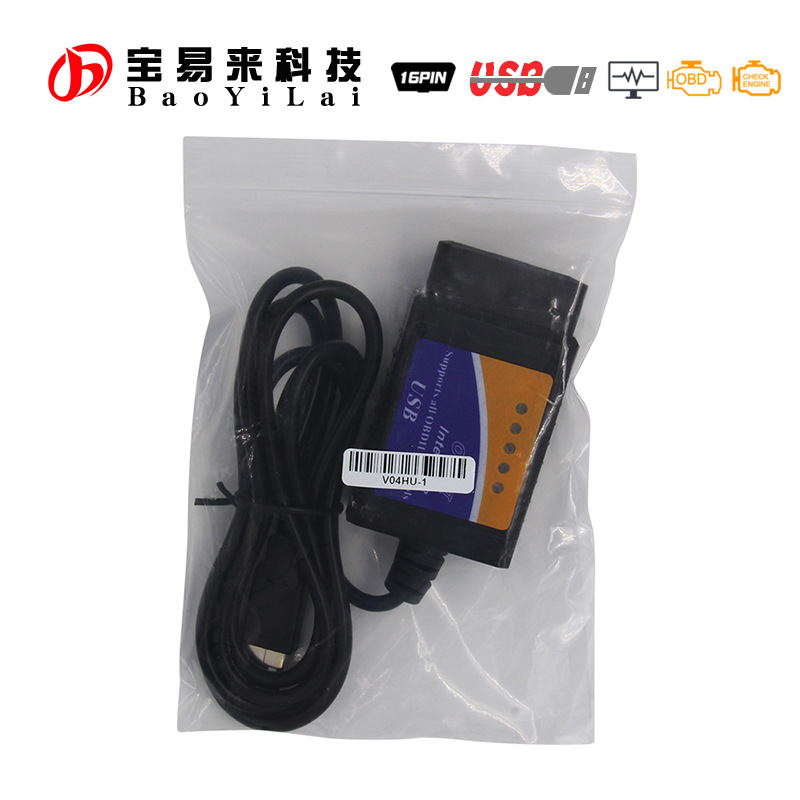

1pc x Mini OBD2 USB Diagnostic Cable

1pc xManual
