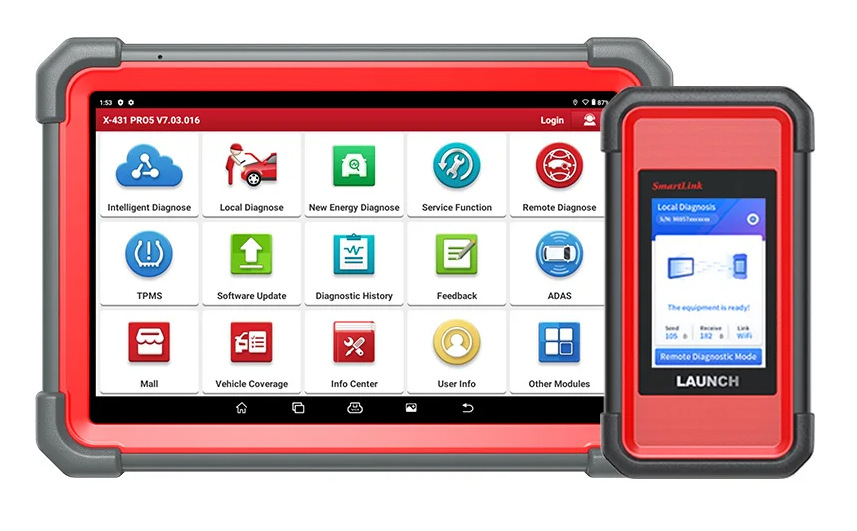

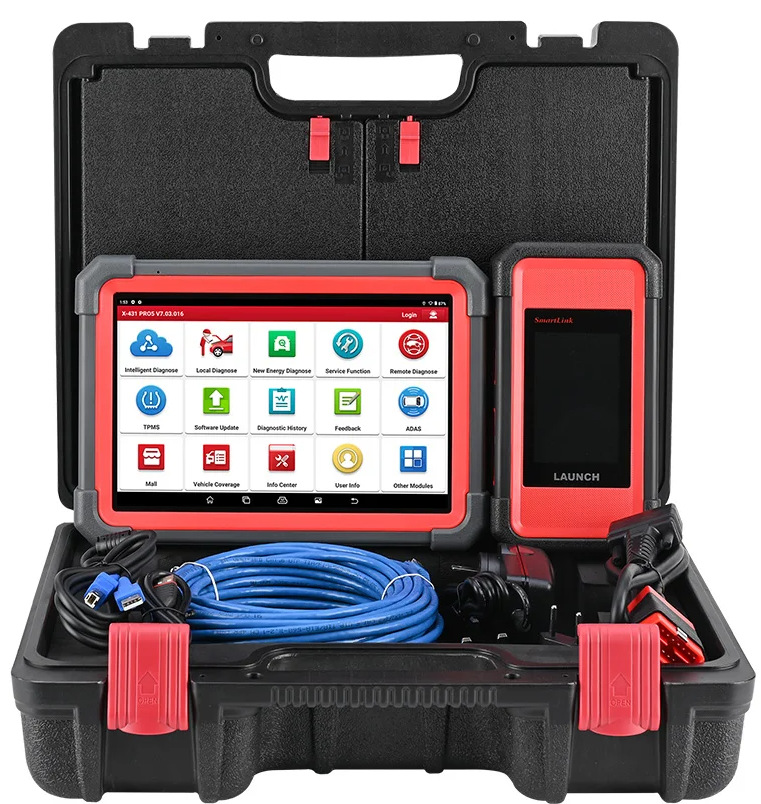

LAUNCH X431 PRO5 SmartLink: Do High-level Repairs without Dealer-Only Scan Tools
Exceeds Most of Your Professional Needs
Vehicles are changing. Diagnostics become increasingly complex. Don’t panic. Gain confidence and get everything you need to diagnose, research, and repair any vehicle issues at your fingertips with LAUNCH's cutting-edge automotive diagnostic solutions all merged into this 2024-NEW X431 diagnostic scanner: PRO5.
1. 2024 New Arrivals, NO IP limited, 2 Years Free Update, 5 Years Warranty
The genuine X431 diagnostic scanner officially authorized from LAUNCH; no IP restrictions; extra-long 2 years software updates at no costs; extended 5 years quality backup.
2. Multilingual Support
Chinese Simplified, English, Traditional Chinese, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian , Finnish, Hungarian, Swedish, Turkish, Serbian, Croatian
3. Upgraded from X431 V+/Pros Mini/PRO3/TURBO/Throttle
A rich array of future-proof functions for productive works: 1) SmartBox 3.0, J2534 ECU Programming, Intelligent AutoVIN & AutoScan, Active Tests, All System Diagnostics, VAG Guided Function, FCA AutoAuth Access, etc.; 2) advanced Online ECU Coding & Adaptations brings more personal settings; 3) 50+ service functions with more frequent updates to support more vehicles.

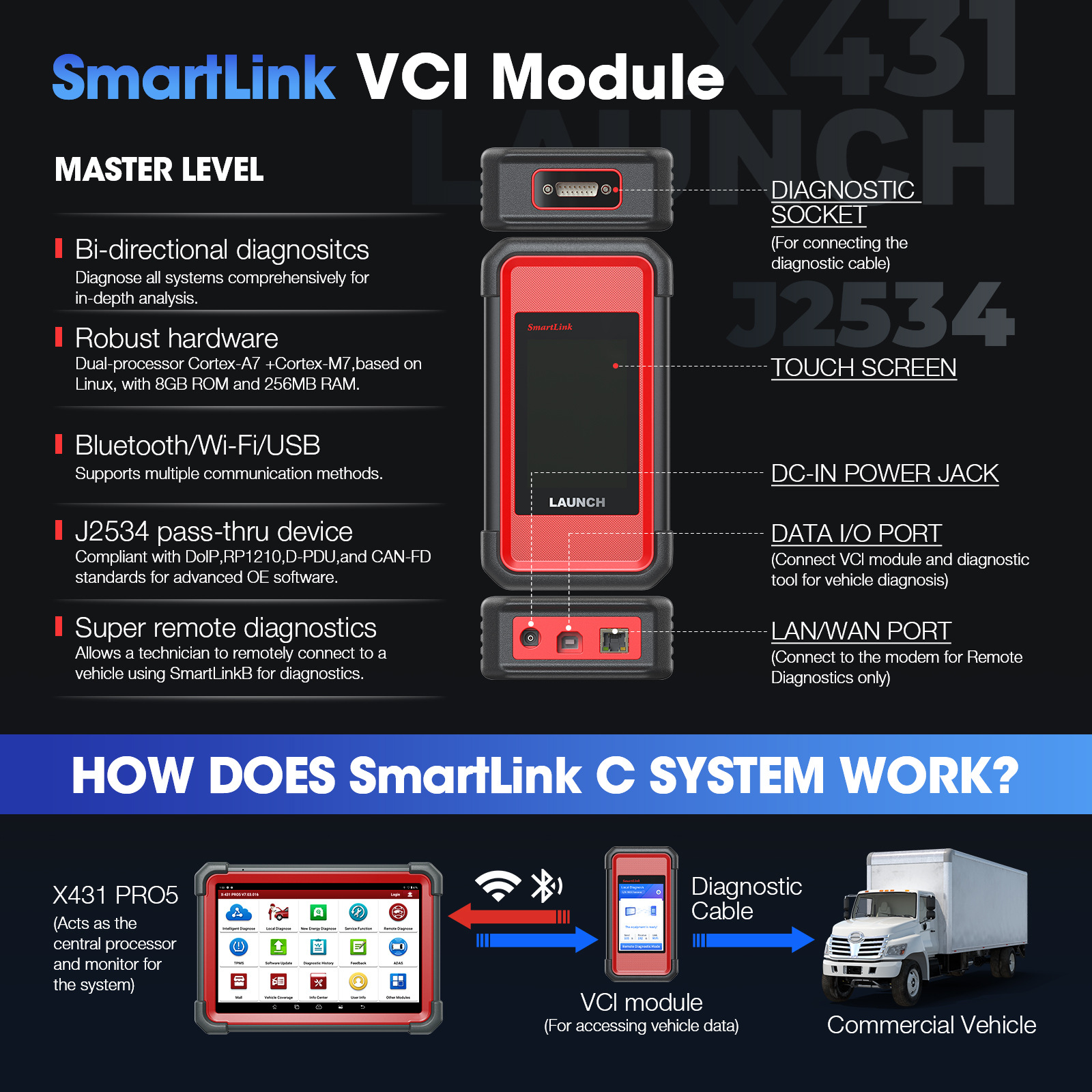

4. SmartLink C V2.0 -- Multifunctional Connector
1) Fix the most vehicles with OE-level vehicle coverage; meet SAE standards for J2534-1 & -2, CANFD, DOIP and support DC9-36V for HD Vehicles;
2) also serves as a wireless VCI.
5. OE-level Car Coverage
OE-level Car Coverage – 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
6. Intelligent Diagnostics
AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.
7. Full Bidirectional Active Test
Effectively test car components on demand.
8. FCA AutoAuth Access
Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.
9. VAG Guided Function
Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
10. Add Modules to Expand Features
ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; BTS360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer.
11. User-Oriented – One-touch software updates
24/7 online feedback; save, record data, and automatically generate reports to share via email; 12-channel graphic live data stream displayed in one screen with max. 4 streams can be merged; 25 languages menu.
12. Great Combination
Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM & 64GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.
13. Topology Module Mapping is supported now!
The Smart Topology Module Mapping in this diagnostic tool allows you to directly view the color-coded topology display for all communication structures between vehicle modules, and click to check the fault code, saving the hassle of toggling menus back and forth to find what you want.
Specification for Launch X431 PRO5 Tablet
Display: 10.1-Inch ，1280x800 FHD IPS
CPU: 8-Core Processor, 2.0GHz
Camera: 800 pixels Rear
WI-FI: 2.4GHz /5GHz
OS: Android 10.0
RAM: 4G, ROM 64G
Battery： 6300 mAh / 3.8V
Operating voltage: 9~36V
Storage Temperature:-20℃~70℃ (-4℉~158℉)
Working Temperature:0℃~50℃ (32℉~122℉)
Dimension: 274x190.5x39.5(mm)
J2534 ECU Programming
Now launch x431 pro5 can do ecu programming as J2534 for BMW and Benz, offering cost-effective access to data and OE programming downloads from vehicle manufacturers.
Other brands are coming soon.
Active Test----Enhance Your Experience.
This X431 scan tool also functions as a bi-directional car scanner to perform specific tests and functions without using the vehicle’s own controls to save time. For example: using the diagnostic tool to command the fuel pump on. If the fuel pressure gauge shows proper fuel pressure, you’d know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If test manually? Three times as long!

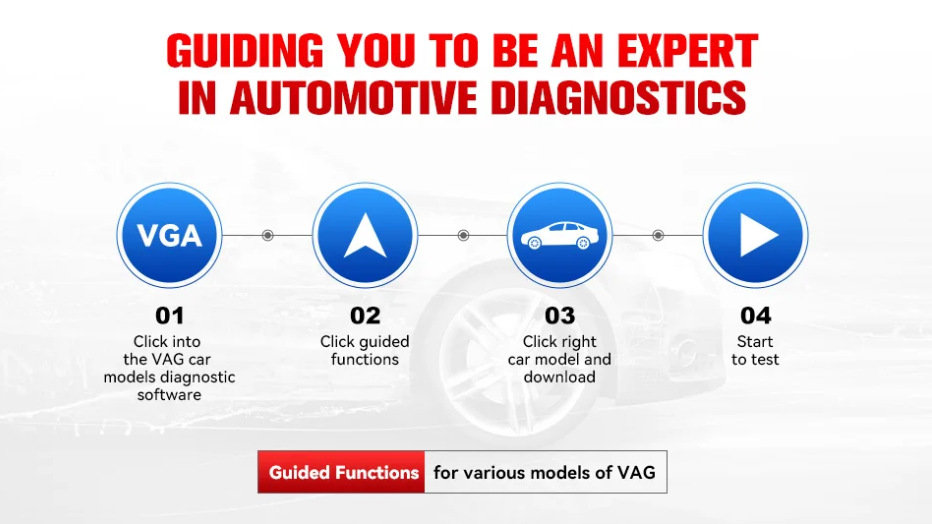

Guided Functions
Guiding you to be an expert in automotive diagnostic.
Compatible with Volkswagen / Audi / Skoda / Seat etc.
FEEDBACK----Take Your Guesswork Out
Any wonder about what specific diagnostic issues you may challenge? This scan tool thoughtfully offers direct access to the “Feedback” function module, which provides customized repair suggestions from LAUNCH’s certified professionals. This is invaluable to workshops attempting to fix issues of new car models that have only been on the market for a short time.
Advanced ALL Systems Diagnoses
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
1) Retrieve ECU information including unit type, version numbers, and other specifications, etc.
2) Read & erase DTCs to locate problem areas and clear the codes.
3) View Live Data of each parameter item.
4) This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.
50+ Hot Reset & Relearn Maintenance Services
You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:
-Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.
-Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
-Injector Coding: write the new injector code into the system to correct cylinder injection quantity.
-Electronic Parking Brake Reset: help replace and reset the brake pad.
-ABS Bleeding: help exhaust the air in ABS system in an easy way.
-Throttle Matching: initialize the throttle actuators to the default state.
-Battery Matching: register the battery after replacement.
-DPF Regeneration: help remove the particulate matter to keep the trap stable.
-Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.
-Tire Pressure Reset: reset the tire pressure.
-Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
-Headlight Matching: initialize the adaptive headlamp system.
-Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
-Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
-Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.
And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.
NOTE: *Explore more service functions by accessing menus of “Vehicle Brand -> System Diagnostics -> Special Function”.
Expand Your Business
This LAUNCH X431 scanner can be combined with compatible functional modules (sold separately) to meet your various diagnostic scenarios:
1) ADAS Calibration Toolkit: calibrate driver assistance systems;
2) VSP-600 VideoScope: inspect areas inaccessible;
3) X431 TSGUN: full-capacity TPMS functions;
4) BTS360 Bluetooth Battery Tester: test battery in-vehicle or out-of-vehicle;
5) X-PROG & X-PROG3 Immobilizer: advanced key programming & IMMO service.
