This cable is universal cable, it works for AUTEL maxisys scanner also works for LAUNCH X431/OBDSTAR scanners etc..

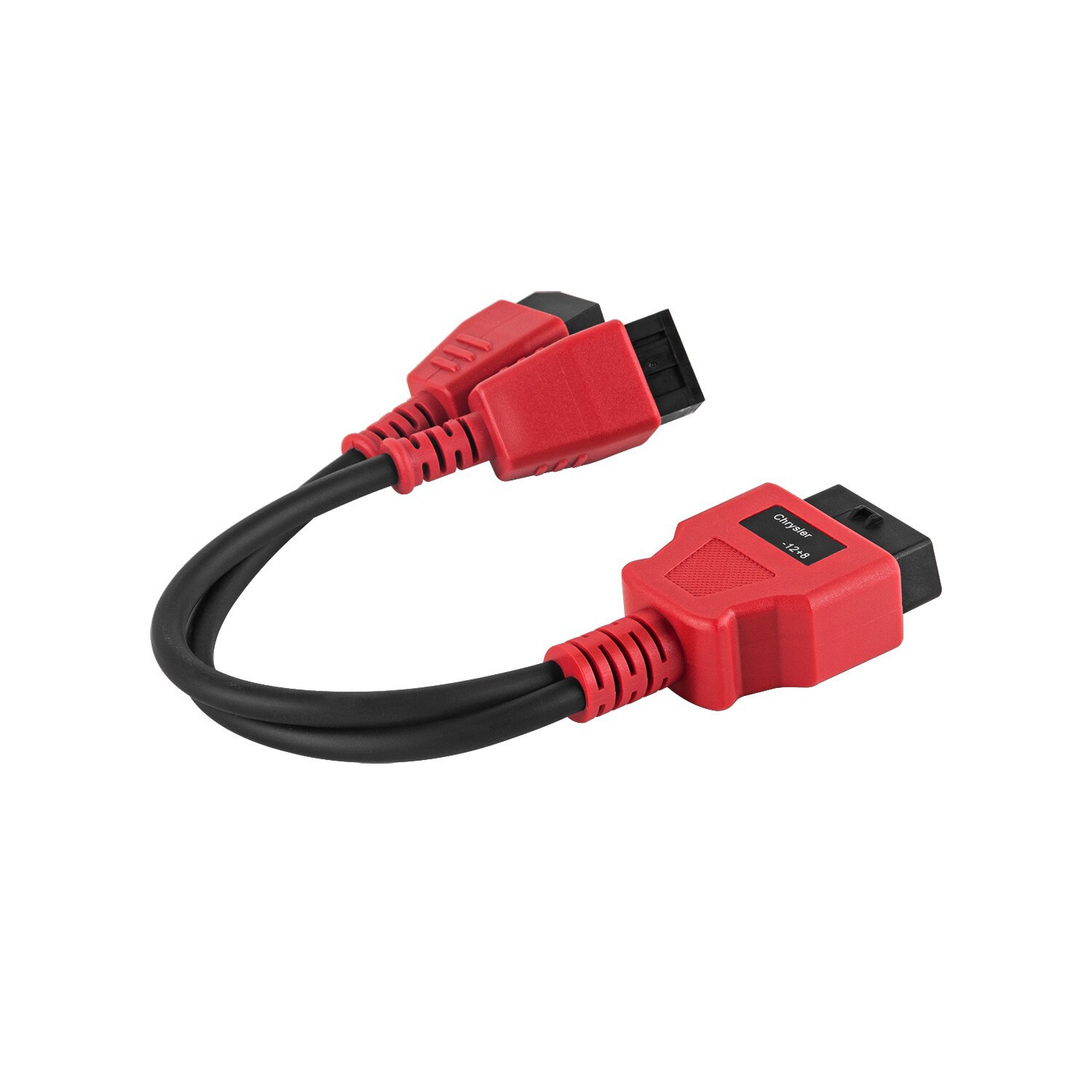

For Chrysler Programming Cable 12+8 Connector For Autel Maxisys LAUNCH X431 Series

The Chrysler 12+8 Adapter is Autel's by pass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.

2018 and newer For Chrysler, For Dodge, For Ram, For Jeep, and For Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new For Chrysler 12+8 Diagnostic Cable allows communication with latest model For Chrysler, For Dodge, For Jeep, For Fiat & For Alfa vehicles.

Suitable for:

What is it used for?

1. Use with Autel MaxiSys scanner to diagnose on For Chrysler For Jeep For Renegade For Wrangler 300C after 2018 year

2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

Expect to see this message when scanning a For Chrysler with the Security Gateway Module:

DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT

Placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

OBDII Cable Adapter for Autel maxisys For Chrysler/ For Dodge/ For Jeep/ For Fiat/ For Alfa 12+8

Access for Chrysler and for Fiat Vehicles Using Secure Gateway Module

Enables Read and Clear Codes

Perform Active Tests

Required to Access 80% of 2018 for Chrysler and for Fiat vehicles

Required to Access 100% of 2019 for Chrysler and for Fiat Vehicles

For Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:

2013+ For RAM Promaster

2015+ For Fiat 500x

2015+ For RAM Promaster City

2016+ For Jeep Renegade

2017+ For Alfa Romeo Giulia

2017+ For Jeep Compass

2017+ For Jeep Cherokee

2018+ For Jeep Wrangler

2018+ For Ram Trucks

2018+ For Dodge Durango

2018+ For Jeep Wrangler (JL Body only, not JK)

2018+ For Dodge Journey

2018+ For Jeep Grand Cherokee

2018+ For Chrysler Pacifica

2018+ For Chrysler 300

2018+ For Dodge Charger

2018+ For Dodge Challenger

2019+ Most For Fiat/ For Chrysler/ For Jeep/ For Ram vehicles

2020+ ALL FCA vehicles

Package List:

1pc x For Chrysler 12+8 Cable Adaptor for Autel MaxiSys

Red Color :
